Product Details:
Payment & Shipping Terms:
|
| Brine Tank Capacity: | 15L|25L | Equipment Material: | P.V.C Rigid Plastic Board |
|---|---|---|---|
| Lab Volume: | 108L|270L | Temperature Precision: | ±1℃ |
| Temperature Range: | 35℃～55℃ | Temperature Fluctuations: | ≤±0.5℃ |
| Temperature Uniformity: | ≤±2℃ | ||
| High Light: | corrosion test chamber,salt spray testing equipment |
||
High Performance Standard Salt Spray Corrosion Test Chamber For Chemical Treatment
Specifications
1. 7 years experience manufacturer
2. The Third party certificate
3. Fast delivery
Introduction:
Salt spray corrosion testing chamber is designed for surface treatment of corrosion-resistant capacity test for various materials, including paint, electroplating, organic and inorganic film, anti-rust oil, chemical treatment, and then achieves a long period of resistance to corrosion products.
Design standard:
CNS:3627,3385,4159,7669,8886；JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: B117,B268.
|
Model |
HD-E808-60A |
HD-E808-90A |
HD-E808-120A |
|
Inner box size: |
60×40×45 |
90×60×50 |
120×100×50 |
|
Outside box size: |
107×60×118 |
141×88×128 |
190×130×140 |
|
Equipment material: |
Both internal and external material is using imported P.V.C rigid plastic board; the case cover is using transparent rigid plastic board P.V.C. |
||
|
Temperature range: |
35℃～55℃ |
||
|
Temperature fluctuations: |
≤±0.5℃ |
||
|
Temperature uniformity: |
≤±2℃ |
||
|
Temperature precision: |
±1℃ |
||
|
Test chamber temperature |
NSS ACSS 35±1℃ CASS:50±1℃ |
||
|
Saturated air barrel temperature: |
NSS ACSS 47±1℃ CASS 63±1℃ |
||
|
Brine temperature: |
35℃±1℃ |
||
|
Spray quantity: |
1.0~2.0 ml / 80cm2 / hr |
||
|
PH: |
NSS ACSS6.5~7.2 CASS 3.0~3.2 |
||
|
Lab volume: |
108L |
270L |
600L |
|
Brine tank capacity: |
15L |
25L |
40L |
|
Power: |
1∮AC220V,10A |
1∮AC220V,15A |
AC 1∮,220V,30A |
|
Multiple safety protection devices: |
Water shortage/ over temperature / phase protection |
||
|
Standard accessories: |
Test salt, measure bucket, tool etc 1 set |
||

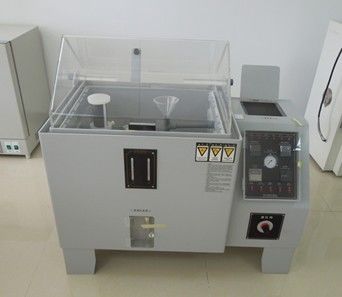

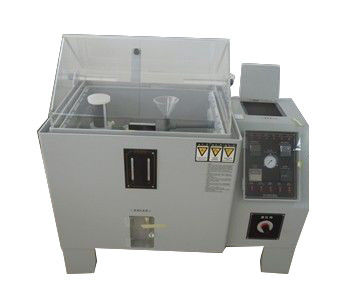

The images
Salt spray test machine, salt spray test chamber
