Payment & Shipping Terms:
|Mobile Or Replaceable
|1∮, AC220V/ 50Hz
fatigue testing equipment,
dynamic test machine

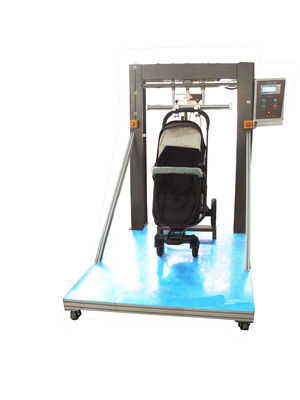

Customized LED Strollers Testing Machine , Lift Down Durable Testing Machines
1.Position the vehicle on a horizontal surface without the parking device applied.
2.Place the test mass as for the stability test. If the vehicle is designed for more than one child use any
number of appropriate test masses, up to one in each place intended to be occupied by a child.
3.Alternately raise and lower the handle(s) by applying a vertical force to the handle so that the rear wheels and
front wheels in turn are raised (120 ± 10) mm, measured at the start of the test from the floor and then lowered
in a controlled manner without pause (see Figure A).
4.Carry out the test for a total of 10 000 cycles at a frequency of (15 ± 2) cycles/min.
This machine is to test the upholding and pushing durability property of the baby stroller according to ASTM Standards. The test method is: place the baby model in the stroller, leave the trailing wheel 150mm high from the ground when lifting the stroller; leave the front wheel 150mm high from the ground when pushing it, repeat this method continuously for 3000 times at the speed of 15±1 per minute, and check whether the stroller is damaged. The machine will stop automatically when it up to its set-up times, so there is no need to watch it.
Power of upholding and pushing
driven by pneumatic cylinder, can lift and push 50kg.
The fixed method of the handle
mobile or replaceable
Adjustable distance from the handle joint
Function of upholding and pushing
leave the trailing wheel 150mm high from the ground when upholding, leave the front wheel 150mm high from the ground when pushing.
LED, 1～9999 times
can be customized
Dimension of the machine
1∮, AC220V/ 50Hz
