Electronic Furniture Testing Machines , Foam Resilience Drop Ball Rebound Testing Equipment

Brand Name:	HAIDA
Model Number:	HD-F754
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Power:

Electric

Product Name:

Furniture Testing Equipment

Use:

Foam Resilience Test

Specimen Size:

100 Mm×100 Mm×50mm

Rate Accuracy:

<1.5%

Steel Ball Diameter:

Φ16-0.1 Mm

Supply Ability:

300 Sets per Month Haida

Highlight:

furniture testing equipment

fatigue testing equipment

Product Description

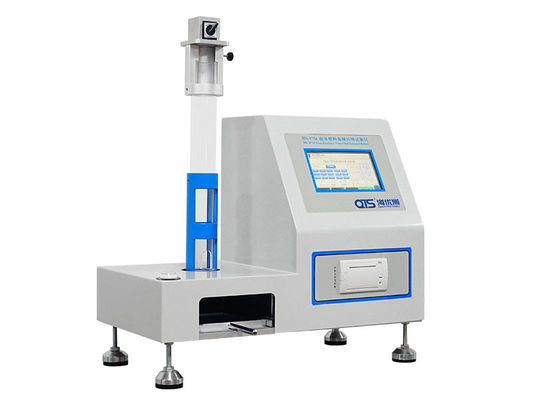

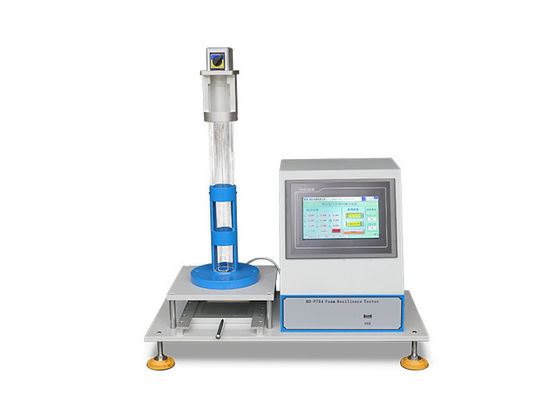

Electronic Furniture Testing Machines , Foam Resilience Drop Ball Rebound Testing Equipment

Usage:

Resilience Rebound Foam Testing Equipment is used to test foam resilience.

Principle:

Resilience Rebound Foam Testing Equipment use the specific diameter and materials steel ball from a specified height given free fall to the foam sample. Measured by the photoelectric sensor steel balls bounce and fall time, and then calculated by the microprocessor for the steel ball rebound height. Base on GB/T667, every specimen need to test three times,select the maximum height as the rebound height of the specimen,and record the average height for the rebound height value.

Standard

GB/T6670,ISO8307,QB/T1952.1,ASTM D3574

Specifications

Items	Specifications
Ball drop distance	GB/T6670:460+0.5%mm ISO 8307 ASTM D3574:500mm
Steel ball diameter	Φ16-0.1 mm
Steel Ball Weight	16.7g
Rate accuracy	<1.5%
Specimen size	100 mm×100 mm×50mm
Power	1∮,AC220V/50HZ

After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
