Brand Name:	HAIDA
Model Number:	HD-F780
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Counter:

LCD, 0~999, 999

Power:

Electronic

Use:

Office Chair

Force Angle:

0~90°

Test Speed:

16 - 20 Times/min Or Specified

Type:

Office Chair Back Durability Tester

Supply Ability:

300 Sets per Month Haida

Highlight:

fatigue testing equipment

impact testing machine

Product Description

LCD Counter Electronic Furniture Testing Machines , Office Chair Back Durability Tester

LCD Counter Electronic Furniture Testing Machines , Office Chair Back Durability Tester 0 Chair Seat and Back Test Video

The usage

Office Chair Back Durability Tester is to evaluate the ability of the chair back to withstand the fatigue stress and wear that occur as the result of user exerting backward pressure on the chair.

HD－F780 Chair Back Tester

1) Force actuator height is adjustable to suit different kinds of chair (500-1200 mm)

2) 6 digits cycle counter for test cycle setting

3) Force of the actuator is adjustable (Maximum force is 120 Kg)

4) A 200 Kg force load cell to check the force applied on to the tilting back rest and the PID function of the controller can automatically fine tune the pressure.

5) The force application angle is adjustable to suit the tilt mechanism angle of the chair. (30 to 90 degree)

6) Test speed adjustable from 10 ~ 20 cycles per minute.

7) Compressed air requirement: 6 bar

8) Power : 220 volts AC , power consumption = 200W

9) Design criteria: BIFMA.X 5.1-2011,section 5,6,15,16 and 10.

Electronic Furniture Testing Machines Testing Office Chair Back

1. Professional design

2. High quality with reasonable price
3. One year warranty free.

The Office Chair Back Durability Tester Parameters

Height of Seat Back	500~1200 mm or specified
Weight of Seat	225 lb or specified
Air Pressure	0~150 Ib
Stroke	0~18 in
Force Angle	0~90°
Test Speed	16 - 20 times/min or specified
Counter	LCD, 0~999, 999
Dimension (W×D×H)	66 × 136 × 140 cm
Weight	549 kg
Power	AC220V, 3A

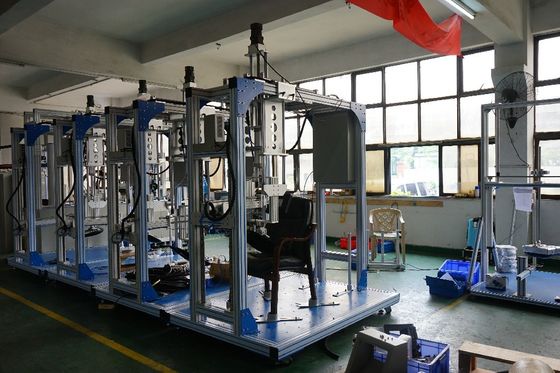

LCD Counter Electronic Furniture Testing Machines , Office Chair Back Durability Tester 1
