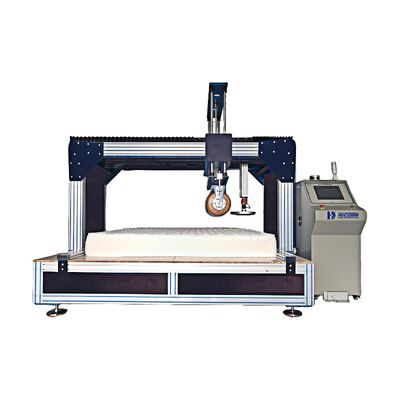

OEM PLC Color Touch Screen Furniture Testing Machines , Mattress Rollator Intergrated Tester
  • name
  • name
  • name
  • name
  • name
  • name

OEM PLC Color Touch Screen Furniture Testing Machines , Mattress Rollator Intergrated Tester

Brand Name: HAIDA
Model Number: HD-F764
MOQ: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China (Mainland)
Certification:
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Power:
0-20r/min
Product Name:
Furniture Testing Equipment
Test Force:
1000N
Power:
AC380V , 5kW
Design Standard:
ASTM F1566-2009, EN1957,GB/T 26706-2011,QB/T 1952.2-2011
Controller:
PLC+ Color Touch Screen+ Output The Test Data
Supply Ability:
300 Sets per Month Haida
Highlight:

furniture testing equipment

,

impact testing machine

Product Description

OEM PLC Color Touch Screen Furniture Testing Machines , Mattress Rollator Intergrated Tester



HD－F764X  Mattress Rollator Intergrated Tester

Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress , simulate human motion to assess the durability of the mattress.)



Main technical parameters:

Max mattress size 2.2M ×2 M
Controller PLC+ Color touch screen+ Output the test data
Hexagonal wood barrel 109kg, Length 36±3in (915±75mm), Diameter of roller (flat to flat) 17±1in(430±25mm)
Cylinder wood barrel 140kg, length 1000mm, Diameter 300mm
Test stroke ASTM 1566 ,No less than 70% of the width of mattress, or 38 in (965mm), whichever is smaller.EN 1957 250mm on either side of the longitudinal centre line
Test speed 0-20r/min
Transmission device High servo system
Height loss test High servo measure system
Mattress edge test

Test times: 5000

Stop time: 3S

Test force: 1000N
Power 3∮,AC380V,5kW
Design standard ASTM F1566-2009, EN1957,GB/T 26706-2011,QB/T 1952.2-2011

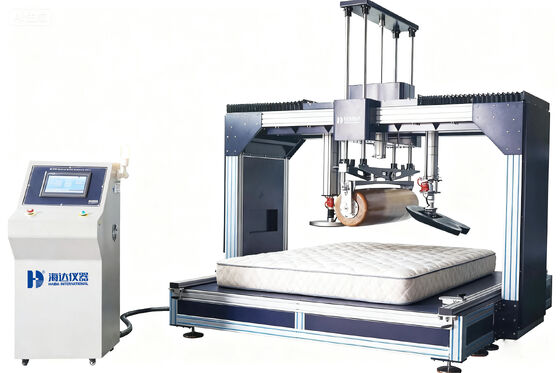

OEM PLC Color Touch Screen Furniture Testing Machines , Mattress Rollator Intergrated Tester 0

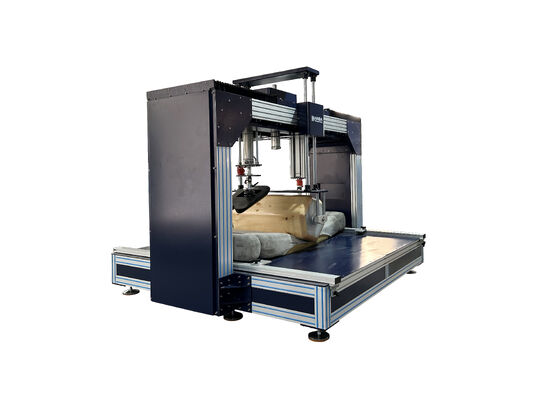

OEM PLC Color Touch Screen Furniture Testing Machines , Mattress Rollator Intergrated Tester 1
Product Detail

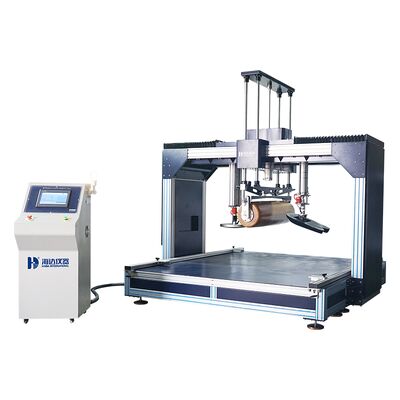

1.Stroke limiter 2.Roller 3.Mattress edge pressure controller
4.Mattress side pressure test 5.Sample carrier 6.Foot
7.Sample 8.Hardness test indenter 9.Touch screen controller



Three functions
Rolling test Softness test Side pressure test
Roll back and forth on the mattress under test to simulate human movements The mattress is repeatedly impacted with a specific loading block Mattress fatigue test
