Comprehensive Mattress Rollator Fatigue Testing Machine / Multifunctional Mattress Durability Test Equipment

Brand Name:	HAIDA
Model Number:	HD-F764
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Power:

0-20r/min

Product Name:

Furniture Testing Equipment

Test Force:

1000N

Power:

AC380V , 5kW

Design Standard:

ASTM F1566-2009, EN1957,GB/T 26706-2011,QB/T 1952.2-2011

Controller:

PLC+ Color Touch Screen+ Output The Test Data

Supply Ability:

300 Sets per Month Haida

Highlight:

furniture testing equipment

impact testing machine

Product Description

Comprehensive Mattress Rollator Fatigue Testing Machine

Multifunctional Mattress Durability Test Equipment

OEM PLC Color Touch Screen Furniture Testing Machines, Mattress Rollator Integrated Tester

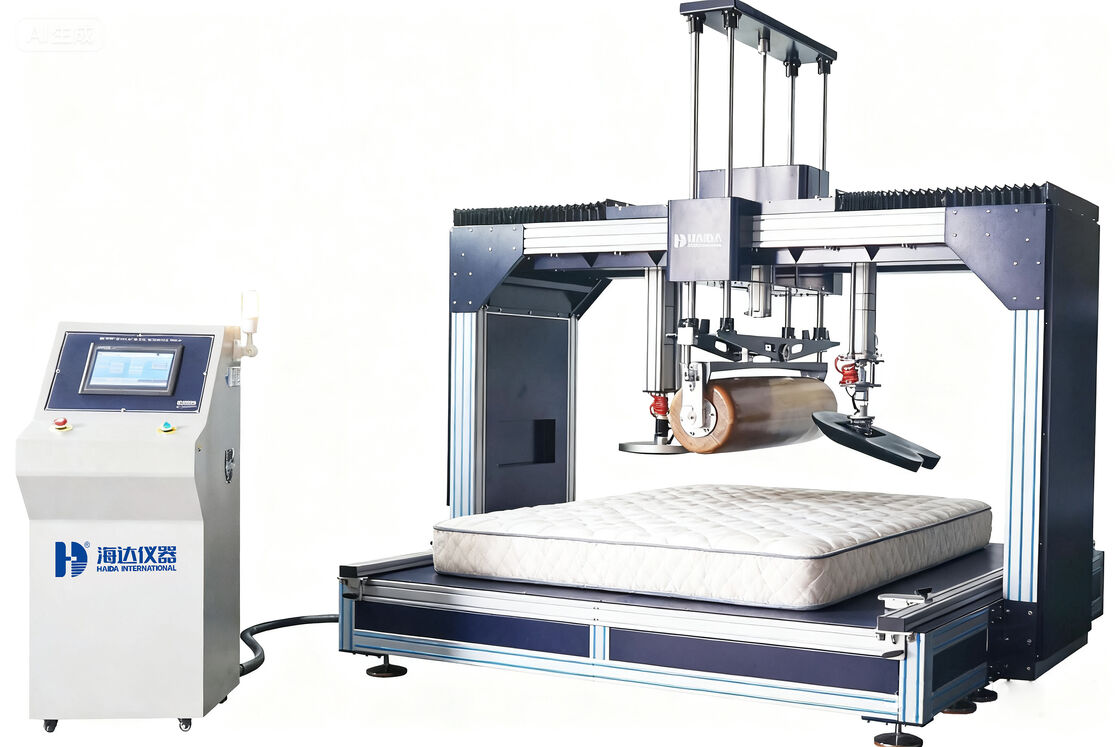

HD-F764 Mattress Rollator Integrated Tester

Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of 300 mm, rolling back and forth on the mattress, simulate human motion to assess the durability of the mattress.)

Main Technical Parameters

Parameter	Specification
Max mattress size	2.2M × 2M
Controller	PLC + Color touch screen + Output the test data
Hexagonal wood barrel	109kg, Length 36±3in (915±75mm), Diameter of roller (flat to flat) 17±1in(430±25mm)
Cylinder wood barrel	140kg, length 1000mm, Diameter 300mm
Test stroke	ASTM 1566, No less than 70% of the width of mattress, or 38 in (965mm), whichever is smaller. EN 1957 250mm on either side of the longitudinal centre line
Test speed	0-20r/min
Transmission device	High servo system
Height loss test	High servo measure system
Mattress edge test	Test times: 5000 Stop time: 3S Test force: 1000N
Power	3∮, AC380V, 5kW
Design standard	ASTM F1566-2009, EN1957, GB/T 26706-2011, QB/T 1952.2-2011

Product Components

1. Stroke limiter
2. Roller
3. Mattress edge pressure controller
4. Mattress side pressure test
5. Sample carrier
6. Foot
7. Sample
8. Hardness test indenter
9. Touch screen controller

Three Testing Functions

Rolling Test

Roll back and forth on the mattress under test to simulate human movements

Softness Test

The mattress is repeatedly impacted with a specific loading block

Side Pressure Test

Mattress fatigue test

Company Introduction

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 20 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
