Product Details:
Payment & Shipping Terms:
|
Brine Tank Capacity: | 25L | Equipment Material: | P.V.C Rigid Plastic Board |
---|---|---|---|
Lab Volume: | 108L | Product Name: | Corrosion Testing Equipment |
Temperature Precision: | ±1℃ | Temperature Range: | 35℃~55℃ |
Spray Quantity: | 1.0~2.0 Ml / 80cm2 / Hr | PH: | NSS ACSS6.5~7.2 CASS 3.0~3.2 |
Highlight: | corrosion testing equipment,corrosion test chamber |
Accelerated Salt Fog Cyclic Corrosion Test Chambers , Salt Spray Corrosion Test Chamber
1. Product Introduction:
Salt Fog Cyclic Corrosion Test Chambers allows selective and reproducible accelerated corrosion testing complying with the requirements of relevant national and international standards such as DIN, ISO, ASTM, DEF, MIL-STD, etc.
The wide-angle test chamber hood allows for loading heavy or bulky test specimens from the top. Two standard sizes are available.
2. Specifications:
Salt spray corrosion testing equipment
1. Durable hard PVC construction
2. Anti-corrosion, easy clean
Salt Fog Test -DIN EN ISO 9227 - DIN 50 021
Condensed Water Test -DIN EN ISO 6270-2 - DIN 50 017 and EN ISO 6988 - DIN 50 018Standard
Climate Test -DIN 50 014, Clause 5 Ambient Temperature
3. Design Standard:
CNS:3627,3385,4159,7669,8886;JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: B117,B268.
4. Parameter:
Model |
HD-E808-60A |
HD-E808-90A |
HD-E808-120A |
Inner box size: |
60×40×45 |
90×60×50 |
120×100×50 |
Outside box size: |
107×60×118 |
141×88×128 |
190×130×140 |
Equipment material: |
Both internal and external material is using imported P.V.C rigid plastic board; the case cover is using transparent rigid plastic board P.V.C. |
||
Temperature range: |
35℃~55℃ |
||
Temperature fluctuations: |
≤±0.5℃ |
||
Temperature uniformity: |
≤±2℃ |
||
Temperature precision: |
±1℃ |
||
Test chamber temperature |
NSS ACSS 35±1℃ CASS:50±1℃ |
||
Saturated air barrel temperature: |
NSS ACSS 47±1℃ CASS 63±1℃ |
||
Brine temperature: |
35℃±1℃ |
||
Spray quantity: |
1.0~2.0 ml / 80cm2 / hr |
||
PH: |
NSS ACSS6.5~7.2 CASS 3.0~3.2 |
||
Lab volume: |
108L |
270L |
600L |
Brine tank capacity: |
25L |
25L |
40L |
Power: |
1∮AC220V,10A |
1∮AC220V,15A |
AC 1∮,220V,30A |
Multiple safety protection devices: |
Water shortage/ over temperature / phase protection |
||
Standard accessories: |
Test salt, measure bucket, tool etc 1 set |

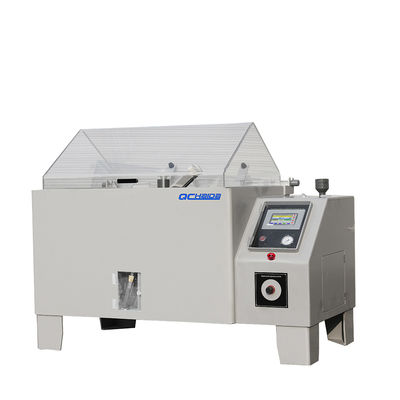

The Images:
