| Features: | Abrasion Resistance | Power: | Electric |
|---|---|---|---|
| Product Name: | Furniture Testing Equipment | Port: | Shenzhen |
| Speed: | 5 ～ 250 Mm / Min | Controller: | Computer Software Control |
| High Light: | furniture testing equipment,impact testing machine |
||

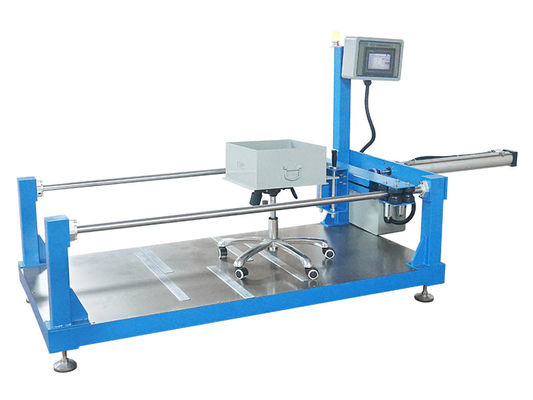

Abrasion Resistance Furniture Testing Machines for Office Chair Castor With Caster
Introduction
Application:
Abrasion Resistance Furniture Testing Machines For Office Chair Castor Applies to pedestal base chairs with casters, to evaluate the ability of the chair base and casters to withstand fatigue stresses and wear caused by moving the chair back and forth. Circular plate, 750mm diameter, rotates at a speed of 20 r/min. The direction rotationreversed every 60r, with a pause of 5 s before restarting.Triangular mobile platform, rotating in the same direction as the circular plate, at a faster nominal speed of 50 r/min. The platform is in contact with the test piece via a load exerted by a total mass of 90 kg (including the mass of the components) equally distributed between three castors.

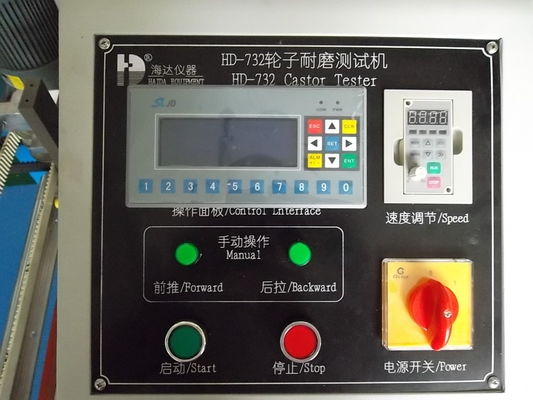

Controller buttons description:
| Item | Specification |
| Test standard | Bifma 5.1-Appendix C |
| Force sensor | 2000KG |
| Test speed | 5 ～ 250 mm / min |
| Display mode | computer display |
| Control method | computer software control |
| Record | The peak value of the machine's force value is displayed, and the maximum damage value can be recorded |
| Power supply | AC / 220V, 10A, 50HZ |
| Overall power | 0.6KW |
| Machine size | (L x W x H) 1100x1100x1650 mm |
| Maximum test sample | width 800mm |
| Configuration function | The whole machine has an abnormal alarm function |
| Main accessories | 6 height blocks for chair feet, 1 base block, 1 auxiliary fixture. |
