| Load Resolution: | 1/100,000 | Product Name: | Carton Compression Tester |
|---|---|---|---|
| Load Accuracy: | ≤0.5% | Capacity (optional): | 2 T ,5T |
| Test Space (L×W×H): | 1500×1500×1500mm | Weight: | Approx. 850kg |
| Highlight: | packaging testing instruments,packaging drop test equipment |
||
PC Control Digital Display Electronic Carton Compression Tester For Paperboard Test
Specification
1.High quality with reasonable price
2.One year free aftersale service
3.Easy operation
About the machine:
Computer Servo Box Compressive Tester is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.
Design criteria:
|
TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3, GB/T4857.4 |
Parameter:
|
Computer Servo Box Compressive Tester |
|
|
Model |
HD-A505S-1500 |
|
Unit (switchable) |
Kg, Lb, N |
|
Capacity (optional) |
2 T ,5T |
|
Load Resolution |
1/100,000 |
|
Stroke (exclude the grips) |
400 mm |
|
Load Accuracy |
≤0.5% |
|
Test Space (L×W×H) |
1500×1500×1500mm |
|
Speed of Compression |
10 ± 3 mm/min |
|
Operation Mode |
PC |
|
Report Items |
Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
|
Structure |
AC Frequency Conversion Motor ( Taiwan); |
|
Dimension (L×W×H) |
2370×1500×2100mm (can be custom made) |
|
Power |
1ø, 220v/ 50Hz |
|
Weight |
Approx. 850kg |
|
Safety Devices |
Overload protection, overvoltage protection & limited position protection device |
|
Standard |
TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
Features of Computer Servo Box Compressive Tester :
Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
It can do test of compression, bending, pressure holding & fatigue.
With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

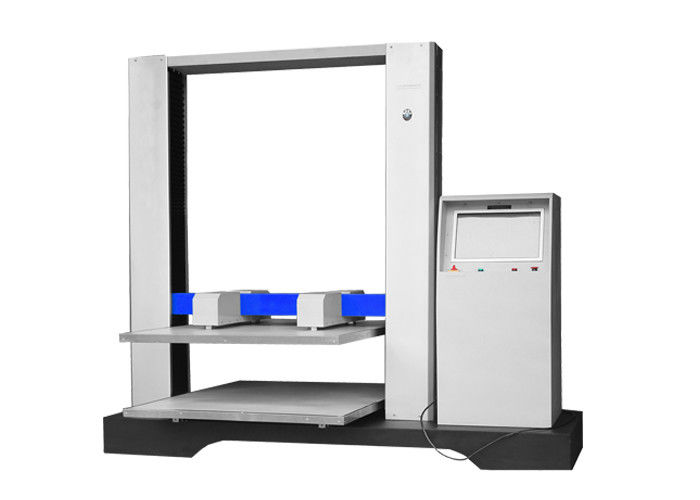

The image of Computer Servo Box Compressive Tester
