Name: Easy To Operate High Accuracy Optical Measuring Instruments With Scanning
Brand: Guangdong Haida Equipment Co., Ltd.
SKU: HD-2010
Price: 481.00 USD
Availability: InStock

Brand Name:	Haida
Model Number:	HD-2010
MOQ:	1 set
Price:	USD 4,959
Packaging Details:	Strong wooden case package
Payment Terms:	Full payment before delivery

Detail Information

Product Description

Detail Information

Place of Origin:

China

Power:

Electronic

Product Name:

Optical Measuring Devices

Software:

Quick Measuring 2.0

Camera:

Color 1/3``CCD Camera

Optical Magnification:

0.7~4.5X

Digital Magnification:

30~230X

Supply Ability:

150 set per mouth

Highlight:

optical measuring equipment

optical measurement equipment

Product Description

Easy To Operate High Accuracy Optical Measuring Instruments With Scanning

Functions:

Manual Image Measuring System can measure point,line, circle,arc,oval and rectangular to improve measurement accuracy with multi-point.
Manual Image Measuring System has many features such as: the combination of measuremnets,center structure,the intersection of structure,the midpoint of construction,line structure,a round structure and structural point of view.
Coordinate translation and coordinats straighten out is to make measurement more convenient and efficient,at the same time increase measurement efficiency.
Macros can measure the same parts faster and more convenient volumn and improve the measurement efficiency.
Measuring data directly output into Word,Excel,AutoCAD.That is more easy and clesr to analysis the test data.
Record users' program,editing and execute command.

High Accuracy Optical Measuring Devices , Manual Image Measuring System

The main technical parameter:

Model :	TT-2010 Manual Image Measuring System
Glass table size :	230 x 130mm
Travel: X,Y :	200 x 100mm
Net Weight :	150kg
Dimension :	6004001100
Travel: Z :	Effective space :245mm Focusing stroke:180mm Work distance:95mm
Video system :	Camera: Color 1/3``CCD camera
	Optical Magnification:0.7~4.5X
	Digital magnification:30~230X
	Object view-field:7~1.1mm
	Contour and surface illumination: Ring LED and brightness can be setup
Power :	AC180V/60Hz;220V/50Hz
Software :	Quick Measuring 2.0

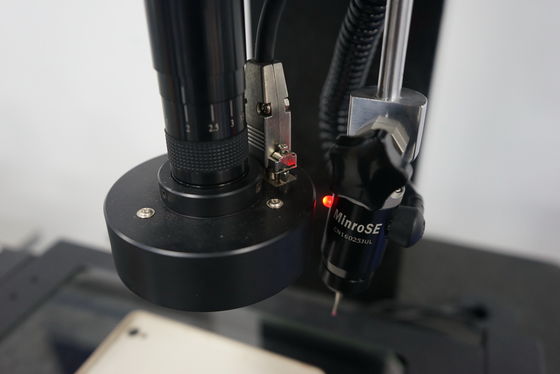

Easy To Operate High Accuracy Optical Measuring Instruments With Scanning 0
