| Box Material: | Stainless Steel SUS304# | Humiture Range: | RT~80C; Light Cycle 45% ~ 95% R.H, Dark Cycle 30% ~ 95% Adjustable |
|---|---|---|---|
| Power: | Electronic | Product Name: | Xenon Test Chamber |
| Rainfall Time: | 1~9999min, Adjustable | Model: | HD-E711-1 |
| High Light: | accelerated aging chamber,aging test machine |
||
Electronic Stainless Steel Xenon Test Chamber for Weathering Accelerated System
The usage:
Xenon testing machine is to test the product undergone illumination / rain/condensation /temperature/humidity/wind and any other climatic changes. This aging tester mainly for the test of non-ferrous/organic /rubber/plastic and building materials. It can provide data for user to evaluate the products' properties and performance
in order to improve the product qualities.
Company Services:
All Hai da employee sad here to the" Quality comes from precision,quality creates the future"business philosophy,serve each client actively and conscientiously inorder to satisfy Hai da equipment brand consumers' needs.
The certification:
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
Standard Parameters:
| Studio size (mm) | 750*500*600mm |
| External size (mm) | 1350X1200X1750 (length × depth × height) |
| Temperature range | RT ~80℃ |
| Humidity range | light cycle 45% ~ 95% R.H, dark cycle 30% ~ 95% adjustable |
| Temperature of the test blackboard | adjustable from 45℃ to 100℃ (deviation ±3℃) |
| Temperature fluctuation | ≤±0.5℃ |
| Temperature uniformity | ≤±2.0℃ |
| Humidity fluctuation | ≤±2% |
| Glass filter | borosilicate glass |
| Xenon light source | imported air-cooled xenon arc source |
| Xenon lamp power | 2.5kw, xenon lamp power is 2.5kw ×3 = 5.4kw, life is 1200 hours |
| Rainfall time | 1 ~ 9999 minutes, continuous rainfall adjustable |
| Rainfall cycle | 1 ~ 240 minutes, interval (break) rainfall adjustable |
| Spray nozzle aperture | Ф 0.8 mm (return hose ultra-fine filters to prevent the nozzle blocking) |
| Spraying period (spraying time/no spraying time) | 18min/102min or 12min/48min(spraying time/no spraying time) |
| Water spraying pressure | 0.12 ~ 0.15Mpa |
| Water pressure | 0.12 ~ 0.15kpa |
| Sample rack | the size of sample tray is 75×300mm |
| The continuous adjustable time of illumination cycle | 1 ~ 999 hours |
| Xenon lamp spectral wavelength | 290nm ~ 800nm adjustable |
| Irradiance range | 500W ~ 1200W/㎡ adjustable. |
| Distance from arc center to sample | 250 ~ 300mm |
| Effective exposure area | 6400C㎡ |
| Heating power | 4.5kw |
| Humidifying power | 3KW |

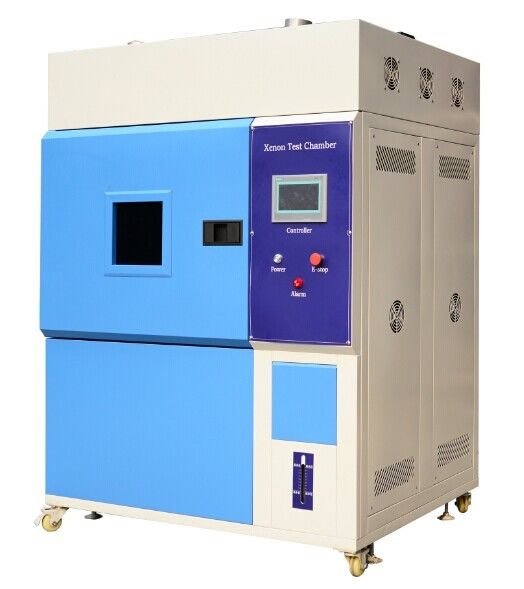

The images of this machine:
