Xenon Laboratory Simulation Test Chamber , Comprehensive Climate Testing Machine

Brand Name:	HAIDA
Model Number:	HD-E711
MOQ:	1set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Box Material:

Stainless Steel SUS304#

Control System:

Germany KLOCKNER-MOELLER Programmable Controller

Inner Box Size:

800*800*800mm

Power:

Electronic

Product Name:

Xenon Test Chamber

Rainfall Time:

1~9999min, Adjustable

Supply Ability:

300 Sets per Month Haida

Highlight:

accelerated aging chamber

aging test machine

Product Description

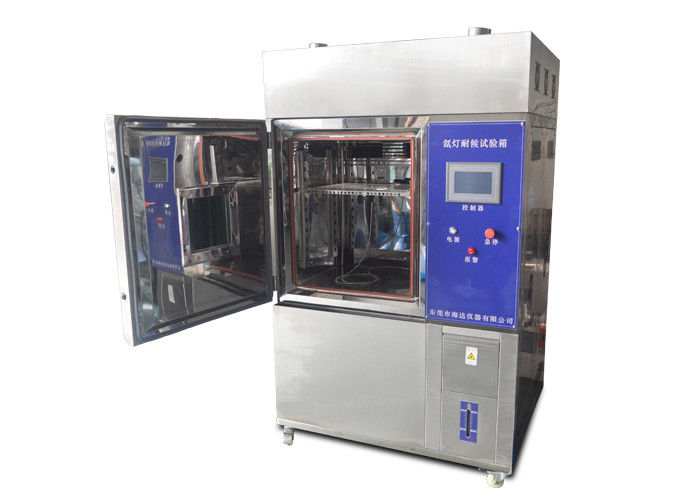

Xenon Laboratory Simulation Test Chamber , Comprehensive Climate Testing Machine

Detailed Product Description

Application:

This xenon testing machine is a comprehensive climate testing machine, can do climatic aging test and the lightfastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition;

Features:

1. Advanced design technology and concept

2. Excellent technology of producing and outstanding system of quality management,

3. Xenon lamp tester can be the most realistic simulated solar spectrum, including ultraviolet, visible and infrared.

4. A full range of spectrum, necessary for most textile sun and color fastness test.

XenonTesting Machine

Item	Specification
Internal Dimension (WDH)	800800800mm
External Dimension (WDH)	145015002000mm
Inner chamber material	SUS 304 # Stainless Steel, Anti-rust, easy to clean
Outer chamber material	Stainless steel
Chamber Temperature	40±3℃
Temperature Uniformity	≤3℃
Blank panel temperature	65±3℃
Humidity Range	55%-90%
Irradiated intensity	0.35±0.02w/m²at 340nm (within±10%)
Xenon lamp power	6.KW water-cooled xenon lamp x 1pc
Control system	Siemens PLC controller, auto display irradiance
Distance from specimen to arc center	250~300mm, Effective exposure area 6400cm2
Filter	Borosilicate filter inside and outside
Water pressure at nozzle	1 - 1.5 bar
Sample rack	Stainless steel rotary sample rack, 3-7rpm
Door seal	Silicone rubber seal
Temperature sensor	PT100 high precision temperature sensor
Air circulation system	Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity
Cooling ventilator	Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system
Cooling ventilator	France Tecumseh compressor
Power	AC380V, 50Hz, three phase
Safety Protection	Over heat protection for fan, Over load protection for cooling system, Over pressure protection for cooling system, Over temperature protection, Over heat and over flow protection for water pump, Leakage protection, Water shortage protection, Auto stop after failure warning

Xenon Laboratory Simulation Test Chamber , Comprehensive Climate Testing Machine 0

Xenon Laboratory Simulation Test Chamber , Comprehensive Climate Testing Machine 1

Xenon Laboratory Simulation Test Chamber , Comprehensive Climate Testing Machine 2
