| Box Material: | Stainless Steel SUS304# | Control System: | Germany KLOCKNER-MOELLER Programmable Controller |
|---|---|---|---|
| Inner Box Size: | 750*500*600mm | Power: | Electronic |
| Product Name: | Xenon Test Chamber | Rainfall Time: | 1~9999min, Adjustable |
| High Light: | accelerated aging chamber,uv aging test chamber |
||

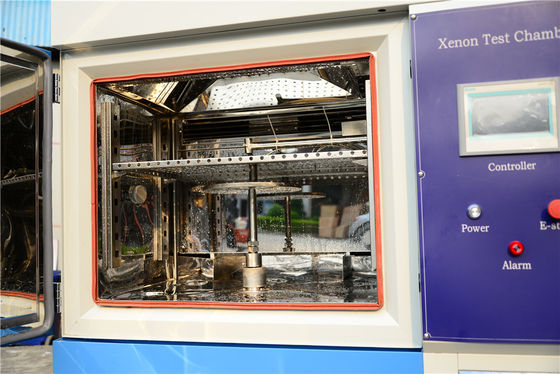

Electronic Programmable Xenon Test Chamber Instruments For Laboratory Equipment
Application:
I. Purpose: Xenon arc test chamber are used for the best simulation of full-spectrum sunlight to reproduce destructive waves existing in different environments. Used for scientific research, product development and quality control to provide the appropriate environment simulation and accelerated testing. Xenon weathering test can be used for the durability test after the selection of new materials, improving existing assessment materials or changes in material composition changes, this test chamber can be use for best simulation of material changes when exposure to the sun in different environmental conditions.
Features:
1. Advanced design technology and concept
2. Excellent technology of producing and outstanding system of quality management,
3. Xenon lamp tester can be the most realistic simulated solar spectrum, including ultraviolet, visible and infrared.
4. A full range of spectrum, necessary for most textile sun and color fastness test.
Main Parameters:
| Studio size (mm) | 750*500*600mm |
| External size (mm) | 1350X1200X1750 (length × depth × height) |
| Temperature range | normal temperature ~80℃ |
| Humidity range | light cycle 45% ~ 95% R.H, dark cycle 30% ~ 95% adjustable |
| Temperature of the test blackboard | adjustable from 45℃ to 100℃ (deviation ±3℃) |
| Temperature fluctuation | ≤±0.5℃ |
| Temperature uniformity | ≤±2.0℃ |
| Humidity fluctuation | ≤±2% |
| Glass filter | borosilicate glass |
| Xenon light source | imported air-cooled xenon arc source |
| Xenon lamp power | 2.5kw, xenon lamp power is 2.5kw ×3 = 5.4kw, life is 1200 hours |
| Rainfall time | 1 ~ 9999 minutes, continuous rainfall adjustable |
| Rainfall cycle | 1 ~ 240 minutes, interval (break) rainfall adjustable |
| Spray nozzle aperture | Ф 0.8 mm (return hose ultra-fine filters to prevent the nozzle blocking) |
| Spraying period (spraying time/no spraying time) | 18min/102min or 12min/48min(spraying time/no spraying time) |
| Water spraying pressure | 0.12 ~ 0.15Mpa |
| Water pressure | 0.12 ~ 0.15kpa |
| Sample rack | the size of sample tray is 75×300mm |
| The continuous adjustable time of illumination cycle | 1 ~ 999 hours |
| Xenon lamp spectral wavelength | 290nm ~ 800nm adjustable |
| Irradiance range | 500W ~ 1200W/㎡ adjustable. |
| Distance from arc center to sample | 250 ~ 300mm |
| Effective exposure area | 6400C㎡ |
| Heating power | 4.5kw |
| Humidifying power | 3KW |
Refrigeration System and Compressor:
1.Refrigerating compressor: imported French "taikang" fully enclosed refrigerating unit.
2.Cooling method: air cooling
3.Refrigerant: environmental friendly refrigerant
4.Main refrigeration accessories: Japan "arugong" solenoid valve;American "Emerson" drying filters, etc.
5.Excellent quality of domestic and foreign well-known brands of air-cooled condenser and fin multi - section evaporator.
Advantages of Refrigeration System:
1.Improved lubrication and lower piston temperature bring greater reliability;
2.Streamlined body to improve airflow management;Reduced pressure, improved refrigeration efficiency;
3.Top discharge valve provides continuous minimum discharge line pulse;
4.SENTRONIC provides reliable lubrication protection system;
5.Use of environmentally friendly refrigerants R23, R404A (excluding CFCS) not prohibited by the Montreal convention or the London amendment.
