| Product: | Rubber Testing Equipment | Power: | Electronic |
|---|---|---|---|
| Reference Standard: | DIN-53516﹑ISO/DIS-4649﹑BS903 PART9 And GB-9867 | Sample Load: | 2.5N ±0.2N / 5 N ±0.2N |
| Roller Wheel Diameter: | Φ(150 ±0.2)mm | Roller Wheel Length: | 460mm |
| High Light: | rubber tensile testing machine,rubber hardness tester |
||

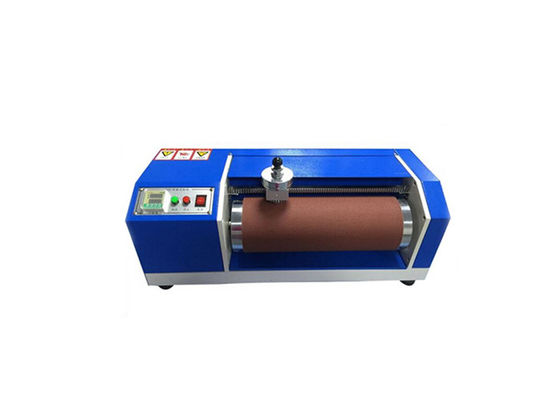

Electronic Rubber Testing Machine , 2.5N ±0.2N / 5 N ±0.2N DIN Abrasion Tester
Brief introduction
1. Product description:
Rubber DIN Abrasion Test Machine is used to test abrasion resistance of elastic material, rubber, tire, conveyor belt, solo, soft synthetic leather and other materials.
2. Principle
Under specified touched pressure and given area, when the sample and the abrasive paper get an angle, testthe abrasion resistance of the sample on the abrasive paper with certain rank.Wrap the abrasive paper on theroller. The sample adpress on the roller with abrasive paper to make the sample move horizontally along withthe roller. Abrasion is produced on the one end of the cylinder sample. Measure the loss value of the sample and calculate the abrasion resistance according to sample density.
3. Design criteria
The instrument reference standard: DIN-53516﹑ISO/DIS-4649﹑BS903 PART9 and GB-9867.
4. Main technical parameters
|
Sample load |
2.5N ±0.2N / 5 N ±0.2N |
|
Roller wheel diameter |
Φ(150 ±0.2)mm |
|
Roller wheel length |
460mm |
|
Roller wheel revolving speed |
40±1r.p.m |
|
Abrasion stroke |
40m equal to roller wheel turns number 84 |
|
Abrasion speed |
0.32m/sec |
|
Dip angle |
3°(included angle between sample clamp holder and vertical plane of roller wheel) |
|
Volume (approx.) |
70cm ×30cm ×30cm |
|
Weight (approx.) |
50kg |
|
Power |
1∮ AC 220V 3A(specified) |
