High Precision Optical Measuring Devices , Manual Image Measuring System

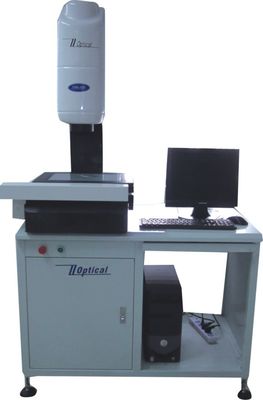

Large Image : High Precision Optical Measuring Devices , Manual Image Measuring System

Product Details:

Place of Origin:	China
Brand Name:	Haida
Model Number:	HD-A544

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 4,959
Packaging Details:	Strong wooden case package
Delivery Time:	15 days after received deposit
Payment Terms:	Full payment before delivery
Supply Ability:	150 set per mouth

Contact Now

Detailed Product Description

Power:	Electronic	Product Name:	Optical Measuring Devices
Software:	Quick Measuring 2.0	Camera:	Color 1/3``CCD Camera
Optical Magnification:	0.7~4.5X	Digital Magnification:	30~230X
Highlight:	optical measuring devices , optical measuring equipment

High Accuracy Optical Measuring Devices , Manual Image Measuring System

Functions:

Manual Image Measuring System can measure point,line, circle,arc,oval and rectangular to improve measurement accuracy with multi-point.
Manual Image Measuring System has many features such as: the combination of measuremnets,center structure,the intersection of structure,the midpoint of construction,line structure,a round structure and structural point of view.
Coordinate translation and coordinats straighten out is to make measurement more convenient and efficient,at the same time increase measurement efficiency.
Macros can measure the same parts faster and more convenient volumn and improve the measurement efficiency.
Measuring data directly output into Word,Excel,AutoCAD.That is more easy and clesr to analysis the test data.
Record users' program,editing and execute command.

The main technical parameter:

Model :	TT-2010 Manual Image Measuring System
Glass table size :	230 x 130mm
Travel: X,Y :	200 x 100mm
Net Weight :	150kg
Dimension :	6004001100
Travel: Z :	Effective space :245mm Focusing stroke:180mm Work distance:95mm
Video system :	Camera: Color 1/3``CCD camera
	Optical Magnification:0.7~4.5X
	Digital magnification:30~230X
	Object view-field:7~1.1mm
	Contour and surface illumination: Ring LED and brightness can be setup
Power :	AC180V/60Hz;220V/50Hz
Software :	Quick Measuring 2.0

High Precision Optical Measuring Devices , Manual Image Measuring System 0

High Precision Optical Measuring Devices , Manual Image Measuring System 1
