Large Video USB Optical Measuring Instruments With 3-Axis CNC Driven Motor

Name: Large Video USB Optical Measuring Instruments With 3-Axis CNC Driven Motor
Brand: HAIDA
SKU: VML-6060CNC
Rating: 4.6 (130 reviews)

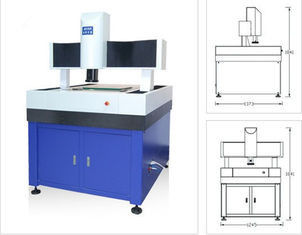

Large Image : Large Video USB Optical Measuring Instruments With 3-Axis CNC Driven Motor

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number:	VML-6060CNC
Power:	Electric
Port:	ShenZhen

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Power:	Electronic	Product Name:	Optical Measuring Devices
Lens:	Pomeas 0.7～4.5X Zoom Lens	Camera:	Wonderful SONY 1/2`` Color CCD Camera
Z-axis Travel:	200mm	Resolution:	0.0005mm
High Light:	optical measuring devices , optical measuring equipment

Large Video USB Optical Measuring Instruments With 3-Axis CNC Driven Motor

The Product Description:

Graph function key, graph constructive functional key and visual tool functional key is separated by color and grouped tactically, it makes the communication between operator and instrument quickly and friendly, and it improves the speed of human measurement obviously.
● Graph function key is black.
● Graph constructive key is red.
● Visual tool function key is black and green.

VML-CNC Characteristics:

● Modern shape design;
● Fashionable auto-painting-craftwork;
● Steady granite base;
● Stable imported V-shape guide;
● Precise metal and glass worktable;
● High-speed 3-axis CNC driven motor;
● Adjustable USB 4division ring LED illumination;
● Advanced Pomeas 0.7～4.5X Zoom lens;
● Wonderful SONY 1/2`` Color CCD camera;
● Powerful 2.5D measuring software QuickMeasuring 4.1 version.

VML-CNC Specifications:

Mode	VML-6060CNC	VML-1080CNC	VML-1210CNC
Order#	52-661	523-181	523-121
Metal table size	800x800mm	1140x1000mm	1140x1360mm
Glass table size	650x650mm	1050x850mm	1050x1250mm
Travel: X,Y	600x600mm	1000x800mm	1200x1000mm
Z-axis Travel	200mm	200mm	200mm
Resolution	0.0005mm	0.0005mm	0.0005mm
X,Y-axis accuracy	≤(3+L/200)um	≤(3+L/200)um	≤(3+L/200)um
Measuring software	QM4.1	QM4.1	QM4.1

VML-CNC Standard Delivery:

Standard Delivery	Order	Standard Delivery	Order	Standard Delivery	Order
Measuring Software	QM4.1	CCD Camera MC3	484-123	Pomeas detent zoom lens	421-101
Calibration Block	581-801	Capture Card 7130	527-130	LED Lightsource	425-400
Scale Transfer U3	564-301	Power,AV,RS232 Cable		Dell PC host

VML-CNC Optional Accessories:

Optional Accessories	Order	Optional Accessories	Order	Optional Accessories	Order
Pomeas Coaxial zoom lens	421*001	Pomeas motor zoom lens	421-001	Operation Joystick	581-542
Working Cupboard ST03	581-631
