| Product Name: | Packaging Clamping Testing Instruments | Power: | Electronic |
|---|---|---|---|
| Design Criteria: | ASTM D6055 | Control: | PLC Control |
| Specimen Shape: | Parallelepiped Transport Package | Maximum Specimen Weight: | 500kg |
| High Light: | packaging testing instruments,paper and packaging material testing instruments |
||

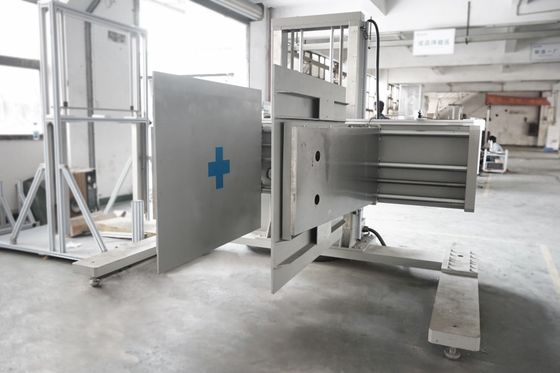

PLC Control Package Testing Equipment , ASTM D6055 Packaging Clamping Testing Instruments
Introduction
The ISTA Package Clamping Force Testing Machine is simulated the impact strength of packaging in the real circumstance of transportation, for example, the transportation of goods. This product is applied to the scientific research institutions, colleges, packaging technique test centers, packaging material manufacturers and foreign trade or transportation departments.
Technical Parameters of ISTA Package Clamping Force Testing Machine:
| Items | Specification |
| Design standard | ASTM D642, ASTM D6055, American SEARS enterprise standard |
| Sample shape | parallelepiped transport package; |
| Maximum test weight | 500KG |
| Clamping pressure | 400-3000Lb (adjustable) pressure can be applied on the corresponding surface according to the transportation diagram on the test sample; |
| Plywood size | H48in * D48in |
| Clamping plate height adjustment | 0-1000mm |
| Lifting speed | 50-300mm / min, set fixed speed |
| Spreading plate width | 200-2000mm |
| Dimensions | 2000 * 2800 * 2350mm |
| Sensor accuracy | 1/100000 |
| Measurement accuracy | 1% |
| Clamping displacement accuracy | ± 0.5MM |
| Power controller | The computer displays the maximum power value in Chinese and English |
| Splint requirements | Two gripping plates are 2000lb parallel and flat without deformation under working conditions, the vertical state between the splint and the floor, the thickness of the splint is ≥15mm, the splint can realize the action and cycle of clamping, opening, rising, and lowering cycle |
| Automatic stop mode | set the upper and lower limits to stop |
| Transmission mode | servo motor controls clamping force, and AC motor controls rise and fall |
| Protection device | leakage protection, travel limit device |
| Can be connected to a computer | |
| Working voltage | AC 220V / 50HZ |
