Electronic Carton Compression Tester , Computer Servo Box Compressive Tester

Electronic Carton Compression Tester , Computer Servo Box Compressive Tester
Electronic Carton Compression Tester , Computer Servo Box Compressive Tester Electronic Carton Compression Tester , Computer Servo Box Compressive Tester Electronic Carton Compression Tester , Computer Servo Box Compressive Tester

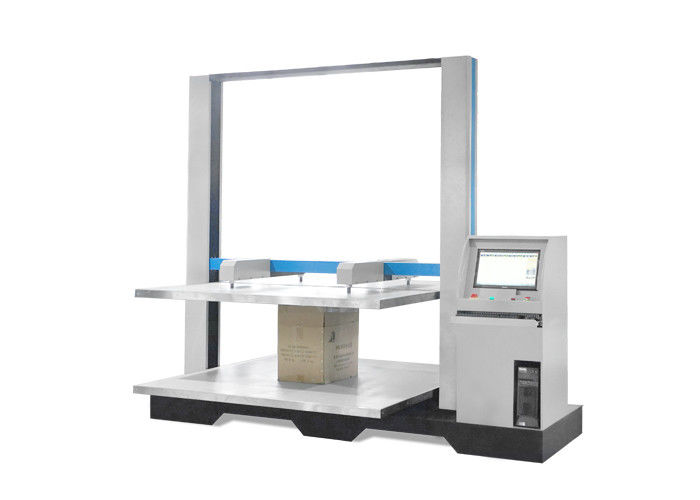

Large Image :  Electronic Carton Compression Tester , Computer Servo Box Compressive Tester

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-A505S-1500
Power: Electric
Port: ShenZhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Product Name: Paper Testing Machine Power: Electronic
Design Criteria: TAPPI-T423PM,ASTM-D2176,JIS-P8115,GB/T2679-5 Counter: LCD,0~999,999
High Light:

packaging drop test equipment

,

paper and packaging material testing instruments

Electronic Carton Compression Tester , Computer Servo Box Compressive Tester



About the machine:
Box Compressive Tester meet with TAPPI,JIS,CE,ISO...etc test standards,and this compression test mahcine is used to test the pressure strength or strike endurance of packing materails like :paper box ,box ,carton, corrugrate box etc, during transportance or carry.


Design criteria:

TAPPI-T804,JIS-20212,GB4857.3.4,
ASTM-D642, QB/T1048, BS EN ISO 12048,
GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,
GB/T4857.4 ,CE,ISO


Application industry:


Home appliances, computers, mobile phones, electronic products, washing machines, shoes, food, medicine, furniture and other industries need to carton packaging, such as corrugated box packaging, honeycomb boxes and so on. At the same time can also be used in plastic barrels (edible oil, mineral water), paper barrels, cartons, paper cans, container barrels (IBC barrels)

Specifications:



Computer Servo Box Compressive Tester
Model HD-A505S-1500
Unit (switchable) Kg, Lb, N
Capacity (optional) 2 T ,5T
Load Resolution 1/100,000
Stroke (exclude the grips) 400 mm
Load Accuracy ≤0.5%
Test Space (L×W×H) 1500×1500×1500mm
Speed of Compression 10 ± 3 mm/min
Operation Mode PC
Report Items Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure AC Frequency Conversion Motor ( Taiwan);
Imported screw rod ;4 sensors; LED display
Dimension (L×W×H) 2370×1500×2100mm (can be custom made)
Power 1ø, 220v/ 50Hz
Weight Approx. 850kg
Safety Devices Overload protection, overvoltage protection & limited position protection device
Standard TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642


Features of Computer Servo Box Compressive Tester :
1. Using a single-screen operation; do not need to switch the screen;
2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.
11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.



Electronic Carton Compression Tester , Computer Servo Box Compressive Tester 0Electronic Carton Compression Tester , Computer Servo Box Compressive Tester 1
