Cardboard Stiffness Paper Testing Equipments With Digital Display

Brand Name:	HAIDA
Model Number:	HD-A500
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Product Name:

Paper Testing Machine

Power:

Electronic

Display:

Digital Display

Measurement Range:

(20 ~ 10000) MN.m

Measuring Thickness:

≤1mm

Test Length:

(50/25/20/15/10/5) ± 0.1mm

Supply Ability:

300 Sets per Month Haida

Highlight:

paper tensile strength tester

paper testing instruments

Product Description

Cardboard Stiffness Paper Testing Equipments With Digital Display

Detailed Product Description

1.Stiffness Tester

High quality and accuracy with reasonable price
Great after-sales service
Fast delivery

2.The usage

The stiffness tester is used to test the stiffness of paper and cardboard, especially suitable for the determination of the stiffness of paper and paperboard with low quantitative or thickness of less than 1 mm.

3.Specifications:

Model	HD-A500
Measurement Range	(20 ~ 10000) mN.m
Measuring thickness	≤1mm
Accuracy	± 0.6mN below 50mN, remaining ± 1%
Resolution	0.1mN
Sample size (L * W)	70 * (38 ± 0.2) mm
Bending length	(50/25/20/15/10/5) ± 0.1mm
Bending angle	(± 7.5º or ± 15º) ± 0.3 º
Load arm length	200 ° ± 20 ° / min
Print output	modular integrated thermal printer
Environmental conditions	temperature 20 ～ 40 ℃, relative humidity <85%
Dimensions	340mm * 330mm * 340mm
Weight	about 15kg

4.The pictures

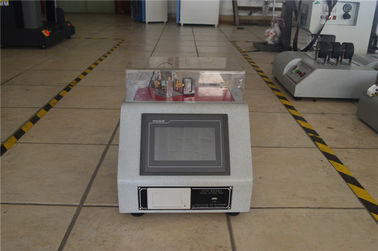

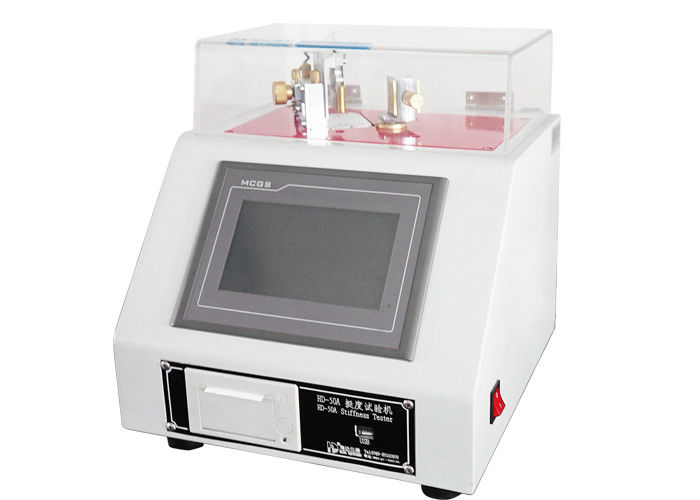

The machine

Cardboard Stiffness Paper Testing Equipments With Digital Display 0
