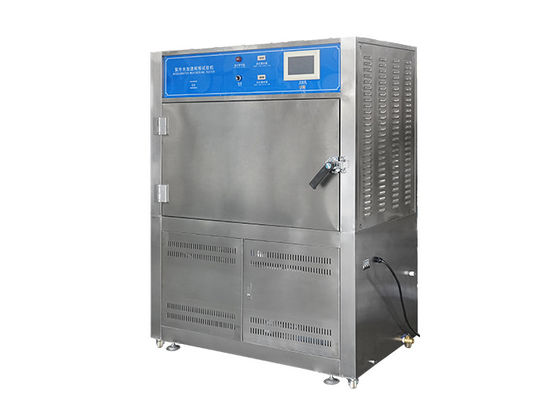

Automatic Steel UV Aging Test Chamber , Standard UVA Accelerated Weathering Tester

Automatic Steel UV Aging Test Chamber , Standard UVA Accelerated Weathering Tester
Automatic Steel UV Aging Test Chamber , Standard UVA Accelerated Weathering Tester
video play

Large Image :  Automatic Steel UV Aging Test Chamber , Standard UVA Accelerated Weathering Tester

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E802-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Humidity Range: ≥95%R.H Material: SUS 304 Steel
Use: 304 Steel UV Aging Test Chamber Product Name: Uv Test Chamber
Temperature Control: PID Self-tuning Temperature Control Mode Temperature Resolution: 0.1 ℃
Voltage: 220V ± 5%;single-phase Three-wire;50Hz;10A;15A GFCI Requirements Wavelength Range: UV-A Wavelength Range Of 315 ~ 400nm
Highlight:

uv aging test chamber

,

aging test machine



         Automatic Steel UV Aging Test Chamber , Standard UVA Accelerated Weathering Tester





Product description:



UV Aging Test Chamber  Optimal fluorescent UV lamps using analog section sunlight UV spectrum, combined with temperature control, and other apparatus for the wet material to cause discoloration analogy, brightness, strength decreases, cracking, flaking, dusting, oxidation and other damage sunlight (UV) , At the same time through the synergies between ultraviolet light and moisture makes the material a single light resistance or a single ability to weaken or failure, which is widely used to evaluate the weather resistance of materials




Application industry (not limited to the following):
1. Paint ink paint, resin, plastic
2. Printing and packaging, aluminum, adhesives
3. Motorcycle industry, cosmetics,
4. Metal, electronics, electroplating, medicine

5. Textile,fabric,rubber,and so on.





Applications function:
1.Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2.To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3.Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.



Test standard(inculding but not limited to... ):
Compliance with ASTM G154, GB/T5170.9 standards,etc.



The main technical parameters:



Item Specification
Inside dimension 650 mm×1140 mm×500mm(D×W×H)
Outside dimension 700 mm×1340 mm×1800mm(D×W×H)
Chamber material SUS#304 stainless steel
Temperature range RT~70℃
Temperature fluctuation ±2℃
Temperature control PID SSR control
Humidity range: ≥95%RH
Controller Programmable controller, LCD touch screen
Control mode Balance temperature humidity control (BTHC)
Test cycle setting UV exposure, condensation and water spray test cycle is programmable
Lamp power 40W/Piece
Distance from sample to lamp 50±2mm
Centre distance between the lamp 70mm
Irradiance 0.45~0.85W/m2 (optional)
UV lamps Imported Atlas UV-A: 315-400nm
Testing time 1~999s, m, h adjustable
Protection system

Overload short circuit protection

Over temperature protection

Water lacking protection

Earth leakage protection

Auto shut off protection



Chamber Structure


The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.

The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.



Control System:



Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.



Test Specimen Mounting:



The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.
