Product Details:
Payment & Shipping Terms:
|
| Product Name: | Packaging Testing Equipment | Power: | Electronic |
|---|---|---|---|
| Capacity: | 1T | Load Resolution: | 1/100,000 |
| Operation Mode: | PC | Standard: | TAPPI-T804; JIS-20212; GB4857.3.4; ASTM-D642 |
| High Light: | packaging testing instruments,paper and packaging material testing instruments |
||

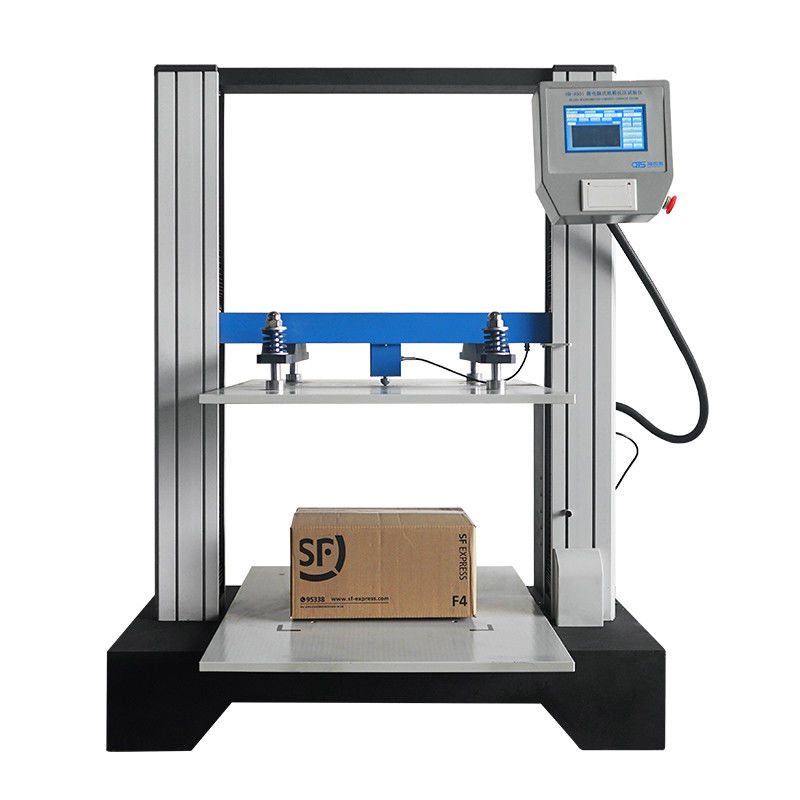

In Stock Battery-Packaged Compression Test Machine
Product Description:
Battery-packaged compression test machine is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton.The result of the test can be used as the important reference of the height of the pilling up of the finished product or the important basis of the packing design.
Specifications:
| Model | HD-A501-900 |
| Unit (switchable) | Kg, Lb, N |
| Capacity (optional) | 2T |
| Load Resolution | 1/100,000 |
| Stroke (exclude the grips) | 400 mm |
| Load Accuracy | ≤0.5% |
| Test Space (LxWxH)90 | 700x900x900mm |
| Speed of Compression | 10 ± 3 mm/min |
| Operation Mode | PC |
| Report Items | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
| Structure | AC Frequency Conversion Motor ( Taiwan); Imported screw rod ;4 sensors; LED display |
| Dimension (L×W×H) | 2370×1500×2100mm (can be custom made) |
| Power | 1ø, 220v/ 50Hz |
| Weight | Approx. 850kg |
| Safety Devices | Overload protection, overvoltage protection & limited position protection device |
| Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
The table parameters for the company Standard Model parameters, we support customer customization parameters
Design Criteria:
TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4
Features:
Battery-packaged Compression Test Equipment
Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
It can do test of compression, bending, pressure holding & fatigue.
With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
Note:
Factory direct sale
The factory has stock
Limited numbers are available on a first-come, first-served basis
The Introduction Of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
