PID SSR Control Accelerated Weather UV Test Machine For Nonmetallic Material

Large Image : PID SSR Control Accelerated Weather UV Test Machine For Nonmetallic Material

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-E802
Power:	Electric
Port:	Shenzhen

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Power:	Electronic	Product Name:	Accelerated Weathering Tester
Outside Dimension:	1340mm×530mm×1400mm（W×D×H）	Materials:	Inside And Outside SUS#304 Stainless Steel
Temperature Uniformity:	±2°C	Temperature Control:	PID Self - Tuning Temperature Control Mode
Highlight:	accelerated aging chamber , uv aging test chamber

PID SSR Control Accelerated Weather UV Test Machine For Nonmetallic Material

1. Product description

Accelerated Weather UV test machine is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.

2. Technical parameters:

Accelerated Weather UV test machine

Item	Specification
Outside dimension	1340mm×530 mm×1400 mm(W×D×H)
Chamber material	SUS#304 stainless steel
Temperature range	RT～70℃
Temperature fluctuation	±2℃
Temperature control	PID self - tuning temperature control mode(PID SSR control )
Humidity range:	about 45%~70% R.H.
Controller	Programmable controller, LCD touch screen
Control mode	Balance temperature humidity control (BTHC)
Test cycle setting	Exposure, condensation and water spray test cycle is programmable
Lamp power	40W/Piece
Distance from sample to lamp	50±2mm
Centre distance between the lamp	70mm
Irradiance	0.45~0.8W/m2 (optional)
UV lamps	Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime)
Standard Specimen Size	75×150mm (48pcs)
Testing time	0～999H, adjustable
Protection system	Overload short circuit protection Over temperature protection Water lacking protection Earth leakage protection Auto shut off protection

3. Chamber Structure:

Accelerated Weather UV test machine
The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.

4. Control System:

Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.

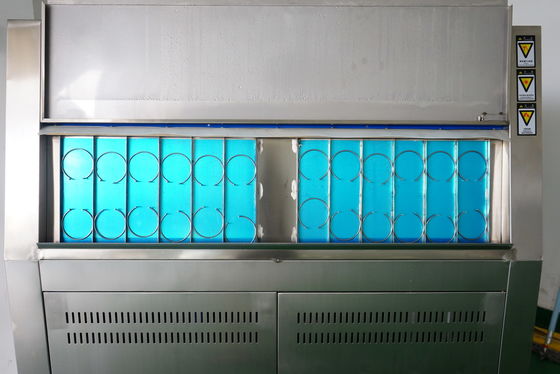

5. Test Specimen Mounting:

Accelerated Weather UV test machine
The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.

6. Design criteria:

Accelerated Weather UV test machine
(1) ASTM D4587: Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings
(2) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Fluorescent UV, Water Spray, and Condensation Method)
(3) ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance
(4) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps
(5) ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics
(6) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure
(7) ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics
(8) IEC 61345: UV Test for Photovaltalic (PV) Modules

7. Poduct image:

Product structure:
PID SSR Control Accelerated Weather UV Test Machine For Nonmetallic Material 0
