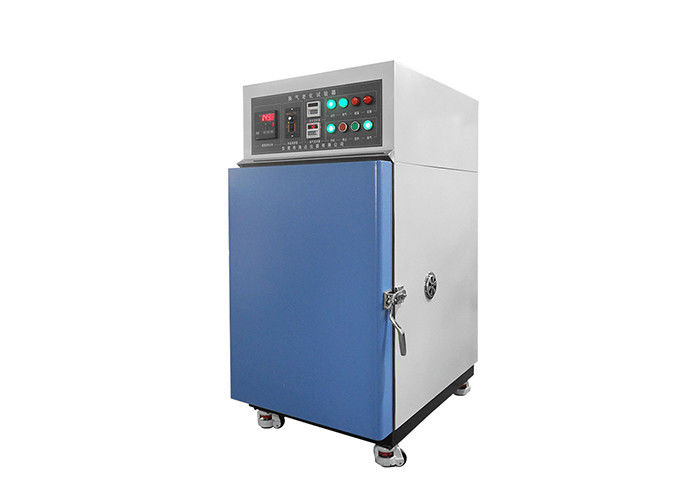

Ventilation Cloth Accelerated Weathering Tester With TCM Control System

Ventilation Cloth Accelerated Weathering Tester With TCM Control System
Ventilation Cloth Accelerated Weathering Tester With TCM Control System

Large Image :  Ventilation Cloth Accelerated Weathering Tester With TCM Control System

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E701
Power: Electric
Port: Shenzhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electronic Product Name: Accelerated Weathering Tester|Ventilation-type Aging Testing Chamber
Testing Space: 45×50×45cm Ventilation Adjusted: Auto-tuning Type
Material: SUS#304 Stainless Steel
Highlight:

accelerated aging chamber

,

uv aging test chamber

Ventilation Cloth Accelerated Weathering Tester With TCM Control System



1. Product introduction:



Ventilation-type aging testing chamber used to test the material characteristic for wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.





2. Main feature:



The oven used to study the rubber that is heated under the rotary mode in a fixed period. Tested 1 day at 70 ℃, theoretically equivalent to 6 months exposed to the outside atmosphere. The oven is equipped with motor-driven rotary disk, hot-air circulation system that ensure uniform distribution of temperature.





3. Corresponding standard:



Accord with ASTM D5423-9(R2005)(Ⅱ-Type oven)and ASTMD 5374-93(2005) UL-1581,GB,VDE,JIS,IEC





4. Applicable industries:



The aging tank used to test the material heat-resisting for polymer materials (plastics, plastic) and electrical insulation materials, such as: wire and cable sheathing, heat-shrinkable tubing, rubber or PVC materials.





5. Main parameters:



Model HD-E701
Testing space About 45×50×45cm
Temperature range RT~200°C,
Resolution 0.1°C
Accuracy 0.5°C
Rotation 0~10 or 10~200 time/H
Ventilation adjusted Auto-tuning type
Ventilation system Using voltage regulator to change the volume of air, convenient to adjust
Built-in circulating air system ensure the temperature uniformly: 1%( count at the highest temperature)
Material SUS#304 stainless steel
Protector Over-temperature breaker
Control system:

1. TCM control system can make the amount of increase heat is equal to heat of los

2. With P.I.D automatic calculation function, precision temperature control

sensor: high-accuracy PT100 thermocouple.temperature fluctuation 0.5%(count at the highest temperature)

Sensor high-accuracy PT100 thermocouple.temperature fluctuation 0.5%(count at the highest temperature)
Inside size 50cm(L)x40 cm(D)x50 cm(H)
Outside size 120cm(L)x65 cm(D)x134 cm(H)
Insulation 80mm rock wool
Count the volume of air

Formula for Japan JIS7212 N = 3590(X-Y)

X: the consumption of electricity in ventilation WH.

Y: the consumption of electricity in no ventilation WH.

V: volume (cm3)

D: Density of air(g/cm3)

T: temperature contrast between inside and outside
