| Control Mode:: | PLC | Test Speed:: | 0-20r/min |
|---|---|---|---|
| Design Standard:: | EN 1957, ASTM D 1566 | Roller：: | Hexagonal Wood Barrel Or Cylinder Wood Barrel |
| Function:: | Roller Test, Firmness Test, Height Test | Power: | 380V, 1.5kw |
| Highlight: | furniture testing equipment,impact testing machine |
||
LCD Touch Screen OEM Furniture Testing Machine / Electronic Mattress Rolling Fatigue Tester
Specifications
1. Mattress Fatigue Tester is used to simulate human motion to assess the durability of the mattress.
2. OEM
1. The usage

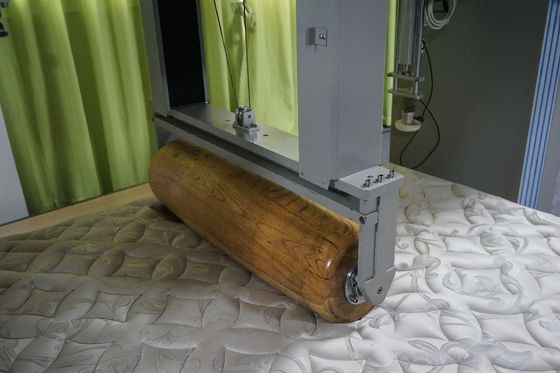

Mattress Fatigue Tester HD-F764 Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress , simulate human motion to assess the durability of the mattress.
2. Function and features:
| Weight of hexagonal wood barrel | 109kg |
| Cylinder weight | 140kg |
| Maximum size of mattress | 2.3m×2.5m (optional) |
| The text display provides easy control and setting. | |
| Machine size(L×W×H) | 2500mm×2800mm×2200mm |
| Power | 380V, 1.5kw |
3. The main components:
| Motor | Taiwan's Teco Motor with reducer of Italy |
| Speed adjustment | Taiwan's "Ed Force" drive |
| Guide bearing | Import from Japan. |
| Rack | aluminum body and steel |
| Control elements | Imported. |
