Product Details:
Payment & Shipping Terms:
|
| Max Stroke: | 1200mm | Test Speed: | 0.1-500mm/min,Speed Computer Adjusted |
|---|---|---|---|
| Power: | Electronic | Product Name: | Furniture Testing Equipment |
| Usage: | Compression Foam | Capacity: | 200kg |
| High Light: | furniture testing equipment,impact testing machine |
||

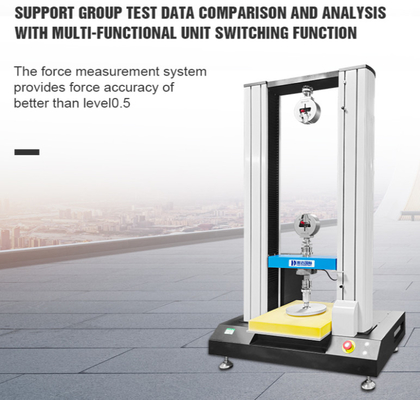

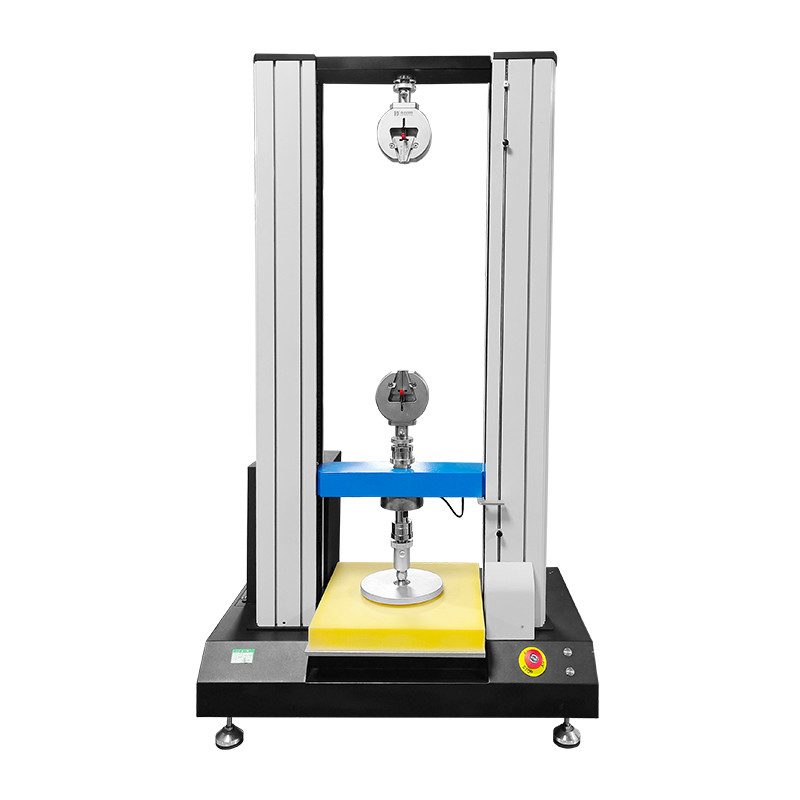

Electronic Hardness Material Compression Foam Testing Equipment
The Usage:
Compression Foam Testing Machine is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic.
Principle:
Put specimen under pressure plate, the plate compress the specimen with a specify speed until the national standard require concavity, the load cell feedback the pressure to computer, it processing and display, then measure the indentation hardness of sponge, foam and other materials.
Technical parameters:
| Item | Parameter |
| Capacity | 100KG-2T Sensor |
| Motor | Panasonic 400W servo motor |
| Drive | 400w servo drive |
| Screw | Imported ball screw |
| Control mode | Computer control, windows mode operation |
| Speed | Speed adjustable (computer adjusted) [锚点] 0.1-500mm / min |
| Maximum stroke | 1200mm (including fixture) |
| Span | ≤400mm |
| Load resolution | 1 / 250,000 |
| Load accuracy | ≤0.5% |
| Unit switching | gf / kgf / N // kN / LBf / W / T |
| Dimensions | (L * W * H) 880 * 510 * 1490mm; |
| Weight | about 150Kg |
| Power supply | 1∮, AC 220V |

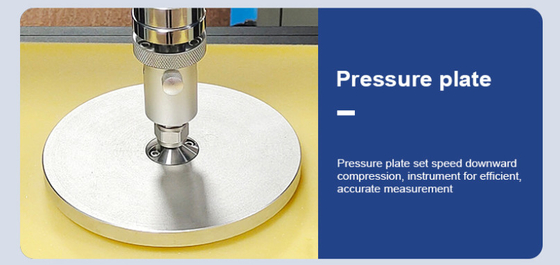

| Configuration | (Pull-up) Fixture is standard according to customer's sample, (Down-pressure) includes 200mm diameter pressure plate and 380mmX380mm tray with holes |
