Temperature Humidity Stability Test Chamber With Air-Cooling

Temperature Humidity Stability Test Chamber With Air-Cooling
Temperature Humidity Stability Test Chamber With Air-Cooling
video play

Large Image :  Temperature Humidity Stability Test Chamber With Air-Cooling

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E702-100B
Power: Electric
Port: Shenzhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Material: Stainless Steel Plate(SUS304) Product Name: Thermal Cycling Device
Power: Electronic Control Methods: Balanced Temperature Humidity Control System (BTHC) PID Intelligent Adjust
Temp. & Humid. Deviation: ±0.5℃,±2%RH Operate Interfaces: Korea TEMI 880 LCD Touch Screen
High Light:

humidity temperature test chamber

,

temperature and humidity chamber

Temperature Humidity Stability Test Chamber With Air-Cooling



Description:

Stability test chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.

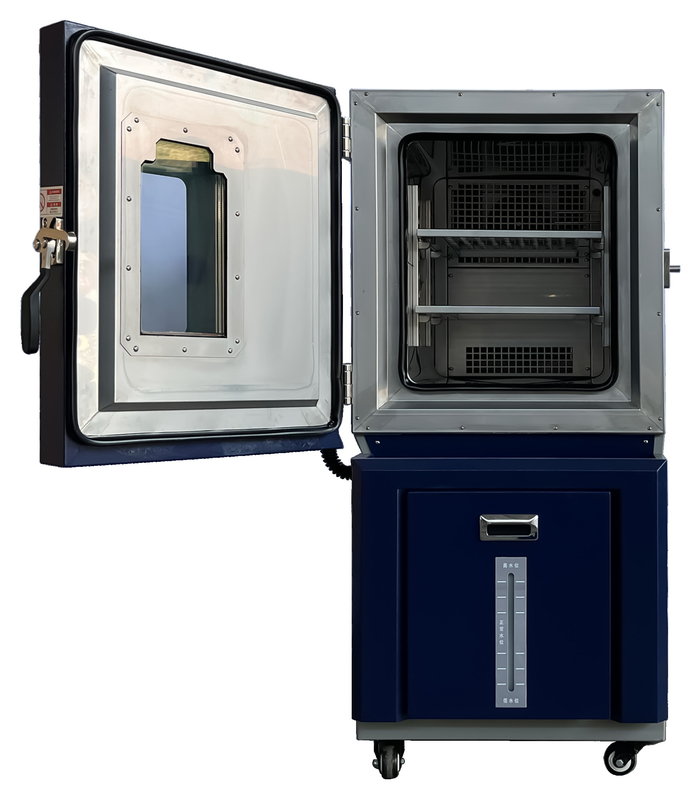

Temperature Humidity Stability Test Chamber With Air-Cooling 0



Main Technical Parameter:

Model

HD-E702-50

HD-E702-100

HD-E702-225

HD-E702-800

HD-E702-1000

Size(cm)

40x50x50

35x45x35

40x50x50

50x75x60

100x100x80

100x100x80

95x140x110

85x135x92

95x140x110

110x167x120

155x210x120

155x210x140


Performance

Control Methods

Balanced temperature humidity control system (BTHC) PID intelligent adjust

Temperature and Humidity Range

-70°C~150°C; 20%-98%R.H

Temp. & Humid. deviation

±0.5°C, ±2%RH

Temp. & Humid. average difference

±2°C, ±3%R.H

Heating Rate

≤2.5°C/min

Cooling Rate

0.7~1.2℃/min

Internal Material

SUS#304 stainless steel

External Material

SUS#304 stainless steel or Antirust processing cold-rolled steel sheet(Spray)

Insulation Material

Superfine wool + polyurethane foam

Regulator

Cooling Mode

Mechanical binary refrigeration way

Compressor

Closed compressor (France Taikang)

Refrigerant

R23/R404A

Condensing Way

Air-cooling and Water-cooling

Humidifier

Stainless steel humidifying tube

Airflow Way

Broadband-type forced air circulation

Controller

Operate

Interfaces

Korea TEMI 880 LCD touch screen

Memory capacity

120 groups, each program 100 segment

Input

PT100 or T thermocouple

Communicate Interface

RS-232

Subsidiary function

Upper and lower alarm; self diagnosis ; alarm display(fault cause); time sequence protection (Automatic turn on or turn off )

Water supply

Water supply

Circulating water supply

Water tank

Built-in hand type(30Kg capacity)

Water quality

resistance >500Ω.m

Standard Configuration

One observe window(Double hollow toughened glass);one test pattern D50mm(on the left); 2 layers sample frame; one floodlight(fluorescent lamp);one water feeding tank;


Safety device

Power leakage protection; Dry heating protection; Water system protection Over-temperature protection switch; Temperature deviation alarm, Compressor Overpressure; overload; Water shortage; Phrase shortage, etc.

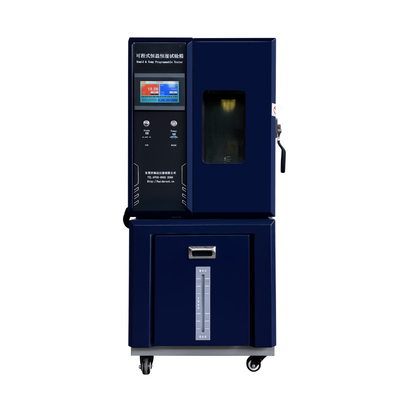

Temperature Humidity Stability Test Chamber With Air-Cooling 1

Product Features:

  1. Material quality of inner box is SUS304 # mirror-face stainless steel imported, and outer box is steel plate and the paint. Box body is processed shape using CNC machine tool, its shape is beautiful and fine.
  2. Heat preservation material used glass fiber cotton of high-intensity PU foam and high density, which can avoid unnecessary energy loss.
  3. Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design, built-in lights to facilitate the test sample state of real-time observation in the course of testing.
  4. Large-size LCD display screen, simple operation, easy to edit programs. PID with automatic calculation function, show failure message .
  5. An RS-232 communication interface, matching recorder, strong expandability.
  6. with timing contact, and be able to cope with dynamic testing and measure test.
  7. The system-wide multi-security protection and power-cut memory.
  8. Freezer imported by the French original armored warrior compressor and use environmental-friendly refrigerant (R134a, R404a, R23).
  9. Frozen system uses units or low-temperature dual-loop system design.
  10. Use more powerful wing-blower air supply cycle, to avoid any dead end, temperature and humidity are evenly distributed in the test region.
  11. Wind-road cycle adopted the design of blowing side wind and return wind. Wind pressure and wind speed are in accord with test standards, and make the door instantaneous temperature and humidity open that is stabilized time soon.
  12. Heating, cooling, humidification and dehumidification system is totally unaided to improve efficiency, reduce testing cost, increase life expectancy and lower failure rate.

FAQ:
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
