LCD Touch Screen Salt Spray Test Chamber , 108L 270L Salt Spray Corrosion Test Chamber

Brand Name:	HAIDA
Model Number:	HD-E808-120A
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Brine Tank Capacity:

15L;25L;40L

Equipment Material:

P.V.C Rigid Plastic Board

Lab Volume:

108L; 270L;600L

USE:

Salt Spray Test Chamber

Product Name:

Corrosion Testing Equipment

Temperature Precision:

±1℃

Temperature Range:

35℃～55℃

Supply Ability:

300 Sets per Month Haida

Highlight:

corrosion testing equipment

salt spray testing equipment

Product Description

LCD Touch Screen Salt Spray Test Chamber , 108L 270L Salt Spray Corrosion Test Chamber

Generl Specifications:

Packaging Dimensions: (WxDxH) 1560*930*1270mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 150kg

Optional Accessories:

PLC Touch Screen Control system
Spray Nozzle

Product introduction:
Salt spray corrosion testing equipment adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

Specifications

Salt spray corrosion testing equipment
1. Durable hard PVC construction
2. Anti-corrosion, easy clean

Design standard:

CNS:3627,3385,4159,7669,8886；JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: B117,B268.

Model	HD-E808-60A	HD-E808-90A	HD-E808-120A
Inner box size: (L×W×H) cm	60×40×45	90×60×50	120×100×50
Outside box size: (L×W×H)cm	107×60×118	141×88×128	190×130×140
Equipment material:	Both internal and external material is using imported P.V.C rigid plastic board; the case cover is using transparent rigid plastic board P.V.C.
Temperature range:	35℃～55℃
Temperature fluctuations:	≤±0.5℃
Temperature uniformity:	≤±2℃
Temperature precision:	±1℃
Test chamber temperature	NSS ACSS 35±1℃ CASS:50±1℃
Saturated air barrel temperature:	NSS ACSS 47±1℃ CASS 63±1℃
Brine temperature:	35℃±1℃
Spray quantity:	1.0~2.0 ml / 80cm²_/hr
PH:	NSS ACSS6.5~7.2 CASS 3.0~3.2
Lab volume:	108L	270L	600L
Brine tank capacity:	15L	25L	40L
Power:	1∮AC220V,10A	1∮AC220V,15A	AC 1∮,220V,30A
Multiple safety protection devices:	Water shortage/ over temperature / phase protection
Standard accessories:	Test salt, measure bucket, tool etc 1 set

The images

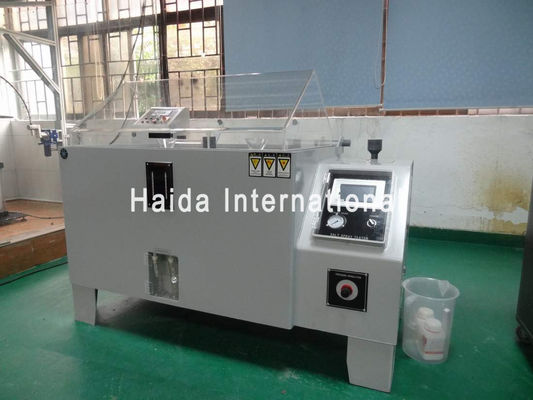

LCD Touch Screen Salt Spray Test Chamber , 108L 270L Salt Spray Corrosion Test Chamber 0
