Product Details:
Payment & Shipping Terms:
|
Brine Tank Capacity: | 15L;25L;40L | Equipment Material: | P.V.C Rigid Plastic Board |
---|---|---|---|
Lab Volume: | 108L; 270L;600L | USE: | Fog Cyclic Corrosion Salt Spray Test Chamber |
Product Name: | Cyclic Corrosion Test Chamber | Temperature Precision: | ±1℃ |
Temperature Range: | 35℃~55℃ | ||
Highlight: | corrosion test chamber,salt spray testing equipment |
Fog Cyclic Corrosion Testing Machine
1. 1 years experience
2. The Third party certificate
3. Fast delivery
Description:
Programmable Fog Cyclic Corrosion Salt Spray Test Chamber is equipped with programmable testing controll systerm.Fully automatic operation of the entire salt spray corrosion detection process, simple operation, accurate data.Data monitoring can be achieved:Salt Spray Method (NSSACSS)35±1℃,Corrosion-resistant Testing Method (CASS) 50±1℃.
Application:
Salt Spray test Chamber is used for imitating natural status in increase imitation test. The imitating condition is harder than status that we usually meet. The tester can combine the follow status such as: salt smog, dry, humidity,normal temperature, low temperature.The tester is for product used in intense changeable environment, such as: parts of automobile, navigation equipment, camera equipment, building material, electroplate coating and resistant to metal electrolytic corrosion in electrical system.
3. Design standard:
CNS:3627,3385,4159,7669,8886;JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: B117,B268.
PARAMETER:
Model |
HD-E808-60A |
HD-E808-90A |
HD-E808-120A |
Inner box size: |
60×40×45 |
90×60×50 |
120×100×50 |
Outside box size: |
107×60×118 |
141×88×128 |
190×130×140 |
Equipment material: |
Both internal and external material is using imported P.V.C rigid plastic board; the case cover is using transparent rigid plastic board P.V.C. |
||
Temperature range: |
35℃~55℃ |
||
Temperature fluctuations: |
≤±0.5℃ |
||
Temperature uniformity: |
≤±2℃ |
||
Temperature precision: |
±1℃ |
||
Test chamber temperature |
NSS ACSS 35±1℃ CASS:50±1℃ |
||
Saturated air barrel temperature: |
NSS ACSS 47±1℃ CASS 63±1℃ |
||
Brine temperature: |
35℃±1℃ |
||
Spray quantity: |
1.0~2.0 ml / 80cm2 / hr |
||
PH: |
NSS ACSS6.5~7.2 CASS 3.0~3.2 |
||
Lab volume: |
108L |
270L |
600L |
Brine tank capacity: |
15L |
25L |
40L |
Power: |
1∮AC220V,10A |
1∮AC220V,15A |
AC 1∮,220V,30A |
Multiple safety protection devices: |
Water shortage/ over temperature / phase protection |
||
Standard accessories: |
Test salt, measure bucket, tool etc 1 set |

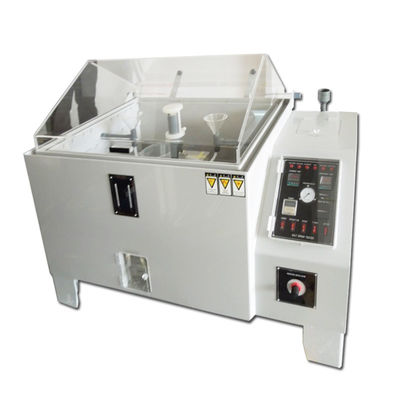

The images
salt spray test machine, salt spray test chamber
Generl Specifications:
Packaging Dimensions: (WxDxH) 1560*930*1270mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 150kg
Optional Accessories:
PLC Touch Screen Control system
Spray Nozzle
(salt spray chamber)Related products: | |
Model / Link | Interior Dimensions(W x D x H) |
HD-E808-60 | 600x400x450mm) |
HD-E808-90 | 900x600x500mm |
HD-E808-120 | 1200x1000x500mm |
