Product Details:
Payment & Shipping Terms:
|
| Internal Dimension (W*D*H): | 1000*1000*1000mm | External Dimension (W*D*H): | 1500*1380*1900mm |
|---|---|---|---|
| Cooling Speed: | 1℃/min In Average (without Loading) | Heating Speed: | 3℃/min In Average (without Loading) |
| Cooling Method: | Air Cooling | Safety Protection Device: | Compressor Overvoltage And Overload |
| High Light: | Electronic Constant Environmental Control Chamber,1000L Environmental Control Chamber,CE Environmental Control Chamber |
||

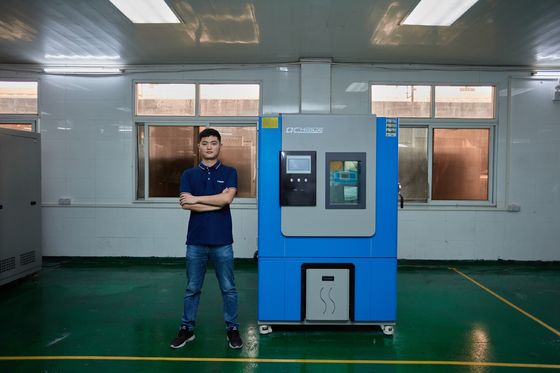

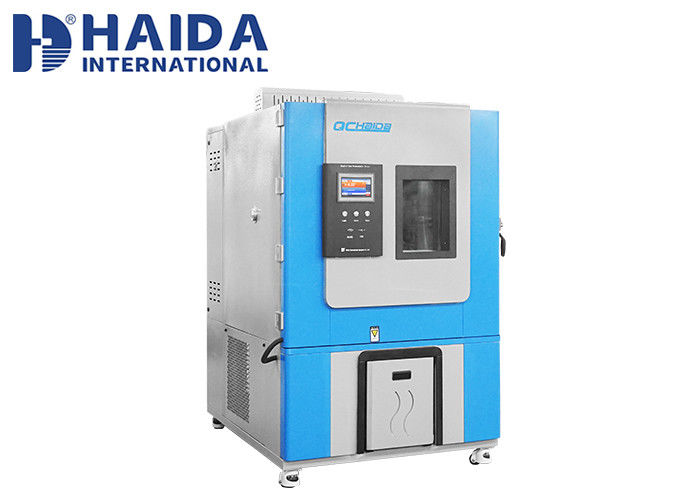

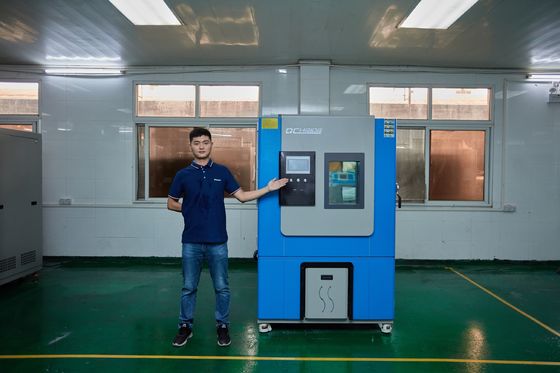

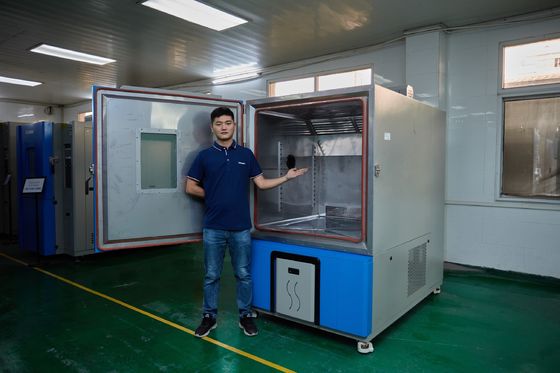

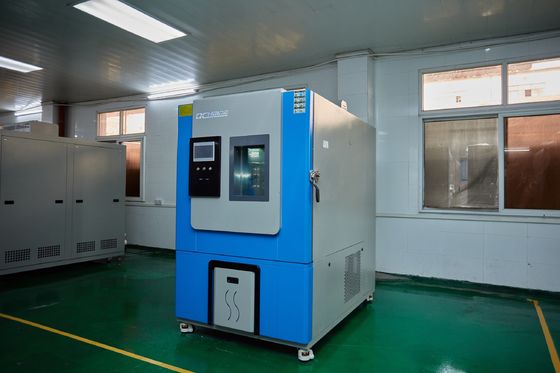

Hot Sell High Capacity 1000L Electronic Constant Environmental Control Chamber
APPLICATIONS
Temp Humidity Chamber is test material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances, Communications,instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.
Safety device
no fuse overload protection, compressor overheating,
overcurrent, overpressure,
heating and dry burning,
overtemperature alarm system in the box
To meet the relevant standards and test methods
GB/T2423.22-87Nb GJB1032-90 MIL-STD-2164/(E/C)
GB/T2423.4-93 GB/T2423.34-86 GJB150.9-86
HUMIDITY RANGE
STANDARD FEATURES
| Model | HD-E702-1000-7 |
| Internal dimension (W*D*H) | 1000*1000*1000mm |
| External dimension (W*D*H) | 1500*1380*1900mm |
| Temperature range | -70~+150℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | 2℃ |
| Humidity range | 20~98%RH (Refer Image below) |
| Humidity fluctuation | ±2.5%RH |
| Humidity uniformity | 3%RH |
| Cooling speed | 1℃/min in average (without loading) |
| Heating speed | 3℃/min in average (without loading) |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel |
| Cooling method | Air cooling |
| Controller |
LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor | France Tecumseh compressor x 2sets |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
| Safety protection device |
Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
