Benchtop Environmental Test Chamber 800L With Tempered Glass Observation Window

Brand Name:	HAIDA
Model Number:	HD-E702-800
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE,ISO

Internal Dimension (W*D*H):

1000*800*1000mm

External Dimension (W*D*H):

1500*1180*1900mm

Observation Window:

Tempered Glass

Testing Hole:

Diameter 50mm, For Cable Routing

Sample Tray:

SUS#304 Stainless Steel, 2pcs

Safety Protection Device:

Protection For Leakage

Supply Ability:

30 Sets per Month Haida

Highlight:

Benchtop Environmental Test Chamber

Environmental Test Chamber 800L

Tempered Glass Environmental Test Chamber

Product Description

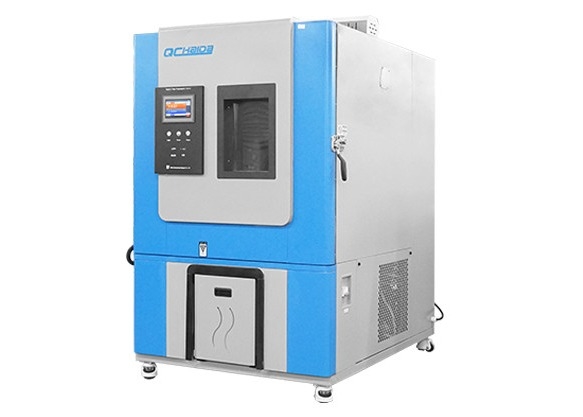

Benchtop Environmental Test Chamber 800L With Tempered Glass Observation Window

Description

Capacity 100L 500L 750L Temperature Humidity Test Climate Chamber Cosmetic Industries to perform temperature & humidity test, cold resistance test, thermal cycle test, ultra low temperature test, high temperature test, storage condition, and calibration function.Suitable for small test pieces and large pieces.

Advantage

1.Multiple model:TH-100,TH-225,TH-500,TH-800,TH-1000
2.Testing small and large test pieces,Can be powered
3.Low types: -20℃/-40℃/-60℃/-70℃/-86℃
4.Free calibration
5. *72 hours commissioning before delivery to ensure product performance

Shipping
1.Packed with export standard wooden case.​ 2.Strong packages can be used for sea, air, railway, truck transport and multimodal transport. 3.Transport equipment to ports or laboratories according to your needs.

Benchtop Environmental Test Chamber 800L With Tempered Glass Observation Window 0

Humidity Range

Standard Features

Model	HD-E702-800
Internal dimension (WDH)	10008001000mm
External dimension (WDH)	150011801900mm
Temperature range	-70~+150℃
Temperature fluctuation	±0.5℃
Temperature uniformity	2℃
Humidity range	20~98%RH (Refer Image below)
Humidity fluctuation	±2.5%RH
Humidity uniformity	3%RH
Cooling speed	1℃/min in average (without loading)
Heating speed	3℃/min in average (without loading)
Internal chamber material	mirror finished
External chamber material	Stainless steel
Cooling method	Air cooling

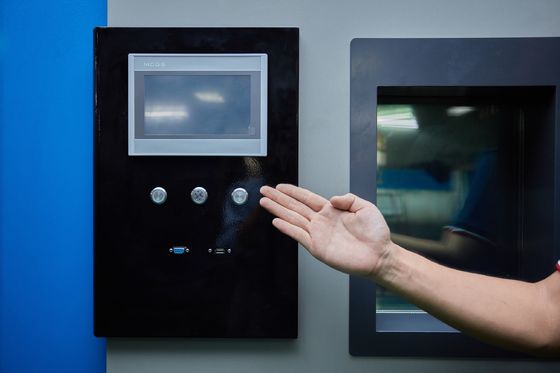

Controller	LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test
Insulation material	50mm high density rigid Polyurethane foam
Heater	Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor	France Tecumseh compressor x 2sets
Lighting	Heat resistance
Temperature sensor	PT-100 dry and wet bulb sensor
Observation window	Tempered glass
Testing hole	Diameter 50mm, for cable routing
Sample tray	SUS#304 stainless steel, 2pcs
Safety protection device	Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage
