Product Details:
Payment & Shipping Terms:
|
| Chamber Dimension (W*D*H): | 1340*700*1800mm | Chamber Material: | SUS#304 Stainless Steel |
|---|---|---|---|
| Temperature Range: | RT To 70℃ | Temperature Fluctuation: | ≤±1.0℃ |
| Humidity Range:: | ≥75%RH | Temperature Uniformity: | 3℃ |
| Controller: | Programmable Controller, LCD Touch Screen | Control Mode: | Balance Temperature Humidity Control (BTHC) |
| Water Usage: | 8L/day | ||
| High Light: | Simulated Environmental Uv Test Chamber,Led Uv Test Chamber,UVB Tube Uv Test Chamber |
||

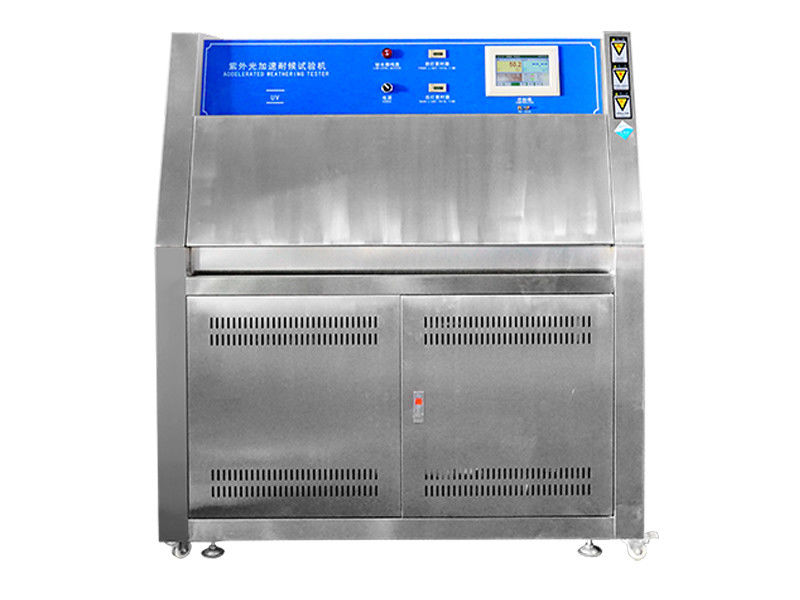

Made In China Simulated Environmental Test UVB Tube Led Uv Test Chamber
APPLICATIONS
1. Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
2. To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
3. Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.
4.UV Aging Chamber simulates the hazards of materials from sunlight, rain and dew and is the easiest, most reliable to use.
Standard Features
| Item | Specification |
| Internal dimension (W*D*H) | 1140*650*500mm |
| External dimension (W*D*H) | 1340*700*1800mm |
| Chamber material | SUS#304 stainless steel |
| Temperature range | RT to 70℃ |
| Temperature fluctuation | ≤±1.0℃ |
| Temperature uniformity | 3℃ |
| Humidity range: | ≥75%RH |
| Controller | Programmable controller, LCD touch screen |
| Control mode | Balance temperature humidity control (BTHC) |
| Test cycle setting | Exposure, condensation and water spray test cycle is programmable |
| Water spray cycle | Spray 18mins in every 120mins / spray 12mins in every 60mins |
| Water usage | 8L/day |
| Distance from sample to lamp | 55±2mm |
| Centre distance between lamps | 65~70mm |
| Irradiance range | 0.45~0.90W/m2 |
| UV lamps | Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime) |
| Lamp power | 40W/Piece |
| Specimen Size | Irregular sample |
| Testing time | 0~999H, adjustable |
| Protection system |
Overload short circuit protection Over temperature protection Water lacking protection Earth leakage protection Auto shut off protection |
FAQ
How to install and use the product?
The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
