High Quality Programmable Simulated UV Destruction Wire And Cable Test UVA Uv Aging Chamber

China Dongguan Haida Equipment Co.,LTD certification
China Dongguan Haida Equipment Co.,LTD certification
The instruments you recommend are very suitable for the testing needs of our laboratory products, after-sale is very patient to answer all our questions, and guide us how to operate, very nice.

—— Div Harish

You are very professional partners and we are willing to establish long-term cooperative relations with you.

—— Wojtek Krawczyk

On behalf of the company to visit your factories and companies, the technical staff is very professional and patient, I think I would be happy to cooperate with you again.

—— Manuel Munoz

I'm Online Chat Now

High Quality Programmable Simulated UV Destruction Wire And Cable Test UVA Uv Aging Chamber

High Quality Programmable Simulated UV Destruction Wire And Cable Test UVA Uv Aging Chamber
High Quality Programmable Simulated UV Destruction Wire And Cable Test UVA Uv Aging Chamber
video play

Large Image :  High Quality Programmable Simulated UV Destruction Wire And Cable Test UVA Uv Aging Chamber

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-E802-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detailed Product Description
Chamber Dimension (W*D*H): 1340*700*1800mm Chamber Material: SUS#304 Stainless Steel
Temperature Range: RT To 70℃ Temperature Fluctuation: ≤±1.0℃
Humidity Range:: ≥75%RH Temperature Uniformity: 3℃
Controller: Programmable Controller, LCD Touch Screen Control Mode: Control Mode Balance Temperature Humidity Control (BTHC)
High Light:

Programmable uv aging chamber

,

ISO uv aging chamber

,

UVA Uv Aging Chamber

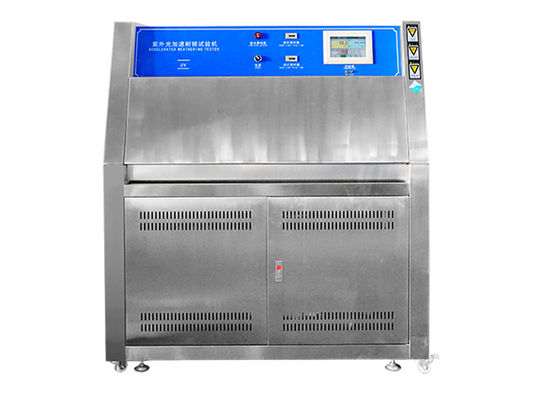

High Quality Programmable Simulated UV Destruction Wire And Cable Test UVA Uv Aging Chamber



Product Description

UV Ageing Test Chamber uses a special fluorescent UV lamp to simulate the effects of sunlight. It uses condensation humidity and water spray to simulate dew and rain. To simulate outdoor weathering,UV Accelerated Test Chamber exposes the material to alternating cycles of UV light and moisture at controlled high temperatures.



UV Aging Test Chamber is mainly used for coating ink paint, resin, plastic, printing and packaging, aluminum, adhesives, automobile and motorcycle industry, cosmetics, metals, electronics, electroplating, medicine and so on. UV Aging Test Chamber meet international standard,such as GB, GJB, MIL,ASTM,CNS,IEC,JIS,Fed Test,BS,etc.



UV Aging Chamber simulates the hazards of materials from sunlight, rain and dew and is the easiest, most reliable to use.



Standard Features

Item Specification
Internal dimension (W*D*H) 1140*650*500mm
External dimension (W*D*H) 1340*700*1800mm
Chamber material SUS#304 stainless steel
Temperature range RT to 70℃
Temperature fluctuation ≤±1.0℃
Temperature uniformity 3℃
Humidity range: ≥75%RH
Controller Programmable controller, LCD touch screen
Control mode Balance temperature humidity control (BTHC)
Test cycle setting Exposure, condensation and water spray test cycle is programmable
Water spray cycle Spray 18mins in every 120mins / spray 12mins in every 60mins
Water usage 8L/day
Distance from sample to lamp 55±2mm
Centre distance between lamps 65~70mm
Irradiance range 0.45~0.90W/m2
UV lamps Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime)
Lamp power 40W/Piece
Specimen Size Irregular sample
Testing time 0~999H, adjustable
Protection system

Overload short circuit protection

Over temperature protection

Water lacking protection

Earth leakage protection

Auto shut off protection
