| Internal Dimension (W*D*H): | 500*600*500mm | External Dimension (W*D*H): | 1000*1000*1750mm |
|---|---|---|---|
| Temperature Range: | ±1℃ | Humidity Range: | 30%~90%RH |
| Ozone Concentration: | 50~1000 Pphm, Adjustable | Ozone Concentration Deviation: | ±10% |
| Sample Holder: | SUS#304 Stainless Steel | Temperature Controller: | Programmable Touch Screen Controller |
| High Light: | 150L Aging Test Chamber,Environmental Ozone Aging Test Chamber,SUS Aging Test Chamber |
||

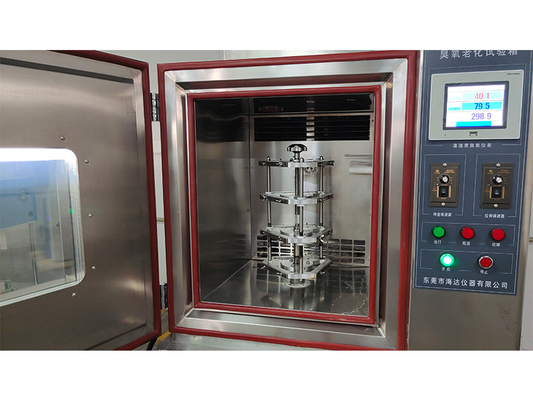

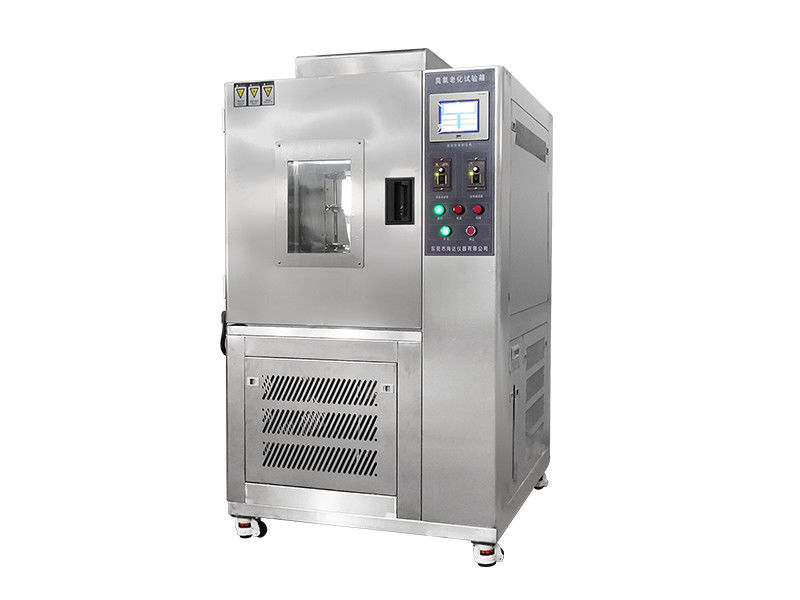

150L Automatic Computer Simulated Environmental Ozone Aging Test Chamber
Chamber Structure And Features
1, Internal material adopts high quality mirror stainless steel for ozone resistance.
2, Insulation material: high-density glass fiber
3, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.
4, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.
5, Chamber bottom has high quality caster for convenient move.
6, Observation window uses multilayer hollow tempered glass.
7, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.
8, Optional: Built-in 360 degree rotation sample holder, including 3 sets static tensile fixture and 3 sets dynamic tensile fixture.
Standard Features
| Model | HD-E801 |
| Internal dimension (WxDxH) | 500*600*500mm |
| External dimension (WxDxH) | 1000*1000*1750mm |
| Temperature range | RT+10~ 60℃ (suggest to use 40℃±2℃) |
| Temperature Fluctuation | ±1℃ |
| Humidity range | 30%~90%RH |
| Humidity fluctuation | ±3%RH |
| Ozone concentration | 50~1000 pphm, adjustable |
| Ozone concentration deviation | ±10% |
| Sample holder | SUS#304 stainless steel |
| Temperature controller | Programmable touch screen controller |
| Ozone concentration analysis | Concentration analysis meter |
| Ozone generator | High pressure silence discharge type |
| Protection system | Leakage, short circuit, over temperature, over heat |
| Test criteria | ASTM D1149, ISO 1431, JIS K6259... |
The Introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
