| Internal Dimension (W*D*H): | 700*500*600mm | External Dimension (W*D*H): | 1350*1300*1850mm |
|---|---|---|---|
| Internal Chamber Material: | SUS 304 # Stainless Steel, Anti-rust | External Chamber Material: | Cold-rolled Steel With Spray |
| Chamber Humidity Range: | 55%~90% RH | Chamber Temperature: | 35℃~90℃ |
| Black Panel Temperature: | 45℃~95℃, Adjustable | Temperature Uniformity: | 45℃~95℃, Adjustable |
| High Light: | Touch Screen Xenon Uv Test Chamber,CE Simulated Uv Test Chamber,Cold rolled Uv Test Chamber |
||

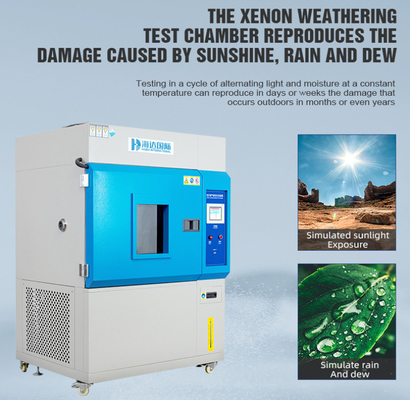

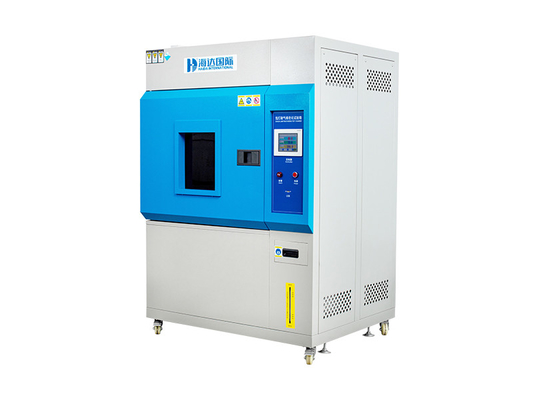

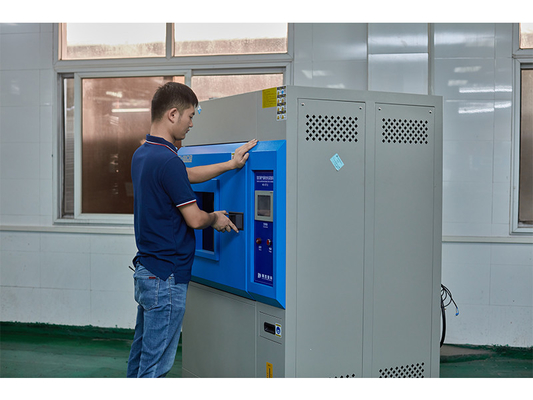

CE Certification Touch Screen Simulated Environmental Xenon UV Test Chamber
Main Feature:
1, Ventilation system: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system
2, Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.
3, Temperature sensor: PT100 platinum resistance thermocouple.
4, Equip with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.
5, Multiple protective devices: Over temperature protection, water leakage alarm, over pressure of compressor, electricity leakage protection, alarm and auto power offer protection. In order to protect Xenon light, the light will turn off automatically once open the door.
1, using full-spectrum xenon lamp LED;
2, a variety of alternative filtration system;
3, rain shower function;
4, relative humidity control.
5, chamber air temperature control system;
6, irregular shape of the sample holder;
Main Parameter:
| Item | Specification |
| Internal Dimension (W*D*H) | 700*500*600mm |
| External Dimension (W*D*H) | 1350*1300*1850mm |
| Internal chamber material | SUS 304 # Stainless Steel, anti-rust |
| External chamber material | Cold-rolled steel with spray |
| Chamber humidity range | 55%~90% RH |
| Chamber temperature | 35℃~90℃ |
| Black panel temperature | 45℃~95℃, adjustable |
| Temperature uniformity | ≤±3℃ |
| Filter | Window glass filter / daylight filter |
| Light source | Air cooled long arc xenon lamp |
| Xenon lamp power | 1.8KW * 3pcs = 5.4KW |
| Irradiance strength | 0.51W/m2@340nm |
| Control system |
LCD programmable controller, Auto display irradiance, capacity: 100 groups program, 99 cycles. |
| Illumination time | 1~999 hours, adjustable |
| Water spray system |
Water spray time 999 minutes settable Interval spray time, 1~240 minutes settable |
| Sample holder | Stainless steel, 1pc |
|
Distance from sample holder to lamp |
250~300mm |
| Heating | Nickel-chromium alloy electric heater |
| Humidification power | Stainless steel surface evaporative humidifier |
| Insulation materials | Supper fine glass fiber |
| Temperature sensor | PT100 high precision sensor |
| Air circulation system | Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity |
| Standard accessories |
Xenon lamp x 3pcs; Humidification cotton x 5pcs; English user manual x 1pc; Operation video x 1pc |
