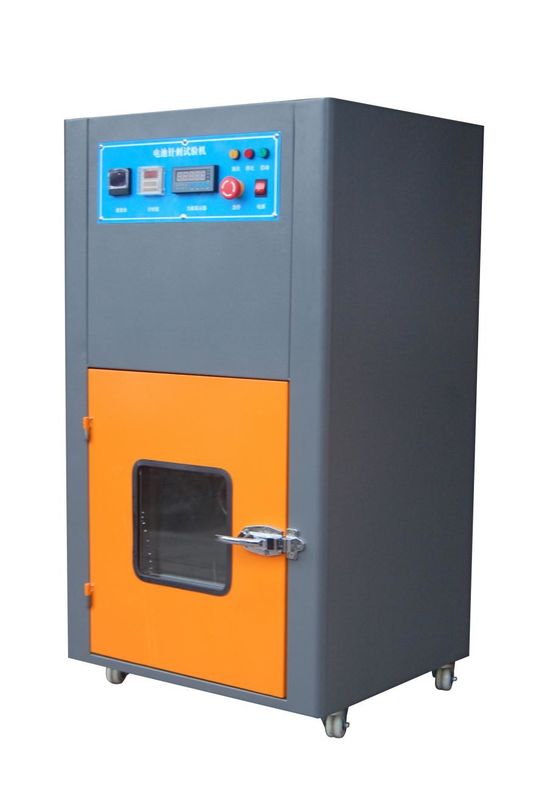

Name: Pneumatic Acupuncture Test Machine For Battery Manual Clamping
Brand: Guangdong Haida Equipment Co., Ltd.
SKU: ITEM80
Price: 100,000.00 USD
Availability: InStock

Brand Name:	HAIDA
Model Number:	ITEM80
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE,ISO

Power:

Electronic

Drive Mode:

Pneumatic

Sensor Resolution:

1/1000

Unit Conversion:

Kg, N, Lb

Data Sampling Frequency:

80 Times/sec

Clamping Method:

Manual Clamping

Supply:

220V, 50Hz

Max. Pressure Range:

1 ~ 300Kg

Supply Ability:

30 Sets per Month Haida

Highlight:

Pneumatic Acupuncture Test Machine

Acupuncture Test Machine For Battery

50Hz Acupuncture Test Machine

Product Description

Pneumatic Acupuncture Test Machine For Battery Manual Clamping

Test Purpose

It suit for simulating the battery's acupuncture when using, transporting, storing or disposing of household waste. The battery is qualified to not explode or fire.

Test Standard

UL 1642:2012; UL 2054:2012; IEC 62281:2004.

Standard Features

Item	Specification
Drive mode	Pneumatic
Max. pressure range	1 ~ 300Kg
Pressure display accuracy	0.1N
Sensor resolution	1/1000
Unit conversion	kg, N, lb
Data sampling frequency	80 times/sec
Effective test space	200200200mm
Machine acupuncture stroke	200mm
Clamping method	manual clamping
Machine dimension(WDH)	5004001200mm
Power supply	1-phase, 220V, 50Hz
