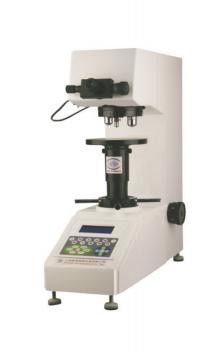

LCD Display Screen Vicker Hardness Tester With Double Channel

Brand Name:	HAIDA
Model Number:	ITEM 4
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE,ISO

Power:

Electronic

Method:

Automatic Loading, Unloading Testing Force

Keeping Time Of Testing Force:

0~99s

Optical Channel:

Double Channel

Hardness Measuring Range:

5HV~3000HV

Max Height Of Specimen:

165mm

Supply:

1-PH, AC220V+5%, 50-60Hz

Net Weight:

About 40Kg

Supply Ability:

30 Sets per Month Haida

Highlight:

Display Screen Vicker Hardness Tester

Vicker Hardness Tester Double Channel

40Kg Vicker Hardness Tester

Product Description

LCD Display Screen Vickers Hardness Tester For Battery With Double Channel

Applications

Vickers hardness tester is a micro hardness testing machine with basic plan, the aircraft used LCD display screen. It is used to test Vickers hardness of ferrous metals, non-ferrous metals, non-metallic materials, which is suitable for parallel planes and curved surfaces measurement.

Standard Features

Item	Specification
Vickers hardness scale	HV0.3, HV0.5, HV1.0, HV2.0, HV3.0, HV5.0
Testing force	0.3kgf(2.94N)/0.5kgf(4.9N)/1.0kgf(9.8N)/2.0kgf(19.6N)/3.0kgf(29.4N)/5kgf(49.0N)
Method of testing force applied	Automatic loading, unloading testing force
Keeping time of testing force	0~99s
Optical channel	Double channel
Optical system	Objective lens: 10X, 20X, 40X Eyepiece magnification: 10X Total magnification(μm): 100X, 200X Measuring range(μm): 400 Resolution(μm): 0.125
Hardness measuring range	5HV~3000HV
Max Height of Specimen	165mm
Distance of Indenter to outer wall	130mm
Power supply	1-PH, AC220V+5%, 50-60Hz
Overall Dimension (mm)	520190650mm
Net weight	About 40Kg

Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
