| Power: | Electronic | Usage: | Battery |
|---|---|---|---|
| Drop Height: | 0-1500mm | Gas Source: | 0.8Mpa |
| Maximum Drop Weight: | 2000KG | ||
| High Light: | 2000KG Drop Test Machine,AC380V Drop Test Machine |
||

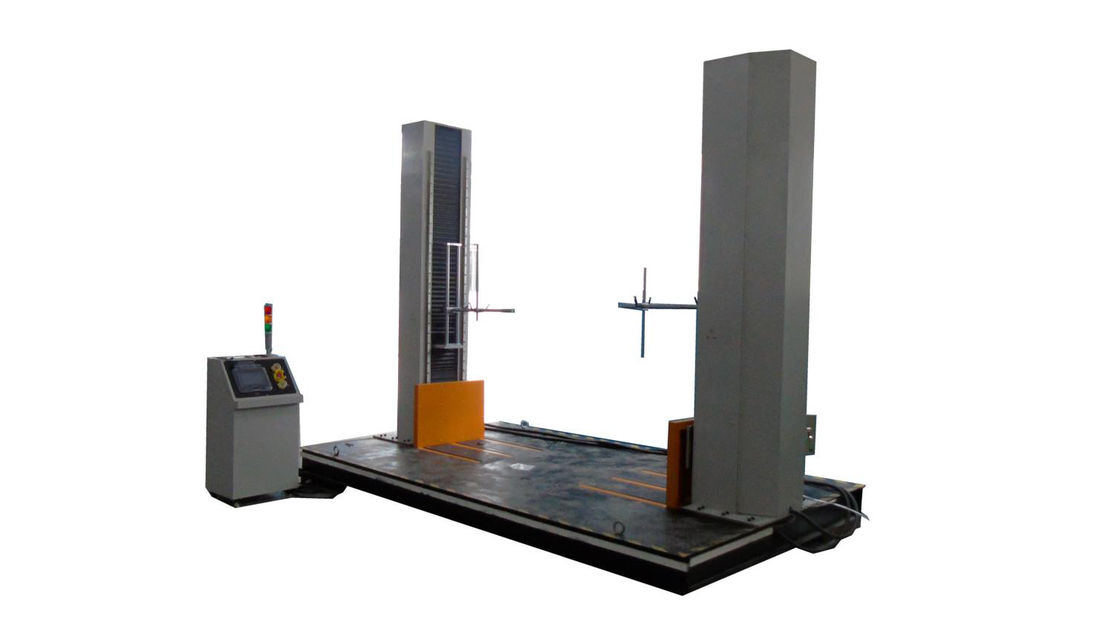

Single Battery And Battery Pack Drop Tester Free Fall Testing Machine
PRODUCT FEATURES
1. The equipment adopts double guide rail, electric lifting system.
2. The device has a simple fixture to facilitate the clamping of the sample.
3. The equipment can achieve low height drop test of rib, face and angle. The drop height can start from zero.
4. The device can perform the drop in one arm, meet the drop requirements of the single battery and the battery pack, and realize the battery test of different sizes.
5. It has two relatively independent control modes, remote and on-site. The battery lifting height can be preset and displayed, and the release process can be automatically controlled.
6. The working area of the device is equipped with sensing device, accompanied by sound and light alarm.
STANDARD parameters
| Model | HD-H202-1 |
| Maximum drop weight | 2000KG |
| Maximum sample size (W*D*H) | 2500*1800*600mm (customized size) |
| Single arm maximum battery size (W*D*H) | 1500*1000*600mm (customized size) |
| Drop height | 0-1500mm |
| Displacement accuracy | ±5mm |
| Control way | On-site touch screen (independent control cabinet) + remote PC |
| Platform size | 2600*3000mm |
| Drop way | Edge/angle/face all-round drop, electromagnetic and pneumatic integrated |
| Drop medium | Cement surface / iron plate / customer specified |
| Equipment structure | Open type |
| Alarm function | Foldable three-color lamp, abnormal operation alarm |
| Protective function | Upper and lower limit protection, foolproof function |
| Equipment material | Channel steel + cold-rolled steel plate, painted, color is standard warm gray 1C (color can be customized) |
| Ground bearing | Requires solid ground, bearing 5.5T |
| Power supply | AC380V |
| Gas source | 0.8Mpa |
A) Quality assurance items
The guarantee period with FOC within one year (not including nonexpendable & transport and travel fees)
B) The main quality warranty maintenance certificate
If there is any dispute please refer to our guarantee letter, so:
1. please keep the guarantee letter, if you lost it, please connect with us in a month.
2. If the guarantee letter has been altered or it has no our stamp, it is useless.
C) The following conditions need to be paid reasonably even in the assurance period:
1. Natural reasons
2. Operating mistakes
3. Voltage is not fit for our operation instruction
4. Repack it without our guides
5. Damaged for borrowing to others
6. Damaged for authorized machine modification
7. Damaged for authorized calibration
8. Authorized transshipment mistake
9. Serve for long distance area
D) Attentions
1. Any service outside Guangdong, China, transport and travel fees shall be paid by customer.
2. The apparatus try not to be used in the following situations:
a. Vibration, rocking the occasion.
b. Direct sunlight.
c. Hot, dusty, damp places.
d. To ensure safe, AC supply of the machine should be well grounded.
e. Do not use strong solvents (such as: benzene, nitro oil) washing machine.
f. Do not inject water and debris into the machine; prevent damage to electrical components and electrical shock.
g. Instrument displays the disassembly and debugging can only be measured by the State Department approved the units and the company, other people not allowed to overhaul.
