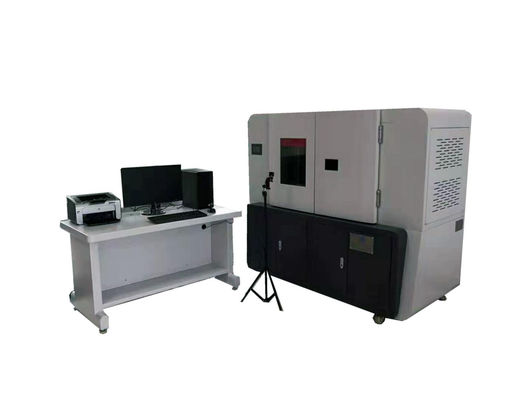

Battery Swelling Pressure Test Machine Pack Swell Tester Variable Rate Sampling Method

Battery Swelling Pressure Tester Expansion Testing Machine

PRODUCT  FEATURES

1. Hold the battery and choose to apply a constant force. As the battery is repeatedly charged and discharged, the battery will expand, and the test machine will always maintain the force and obtain the expansion size data.

2. After clamping, the position can be selected unchanged, the test machine automatic force and battery expansion force balance, record the expansion force data

3. Select multi-step mode, select force cutoff or displacement cutoff, or select multiple cutoff conditions at the same time, either one will satisfy this step first.

4. Force, deformation and voltage can be recorded, which can form EXCEL tables and graphs, and automatically identify the highest peak.

5. Using variable rate sampling method, long-term continuous test, recording 6 months of data.

STANDARD PARAMETERS

A) Quality assurance items

The guarantee period with FOC within one year (not including nonexpendable & transport and travel fees)

• During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part(just for nonexpendable part) induced by non-human damage;
• If any quality problems occurs within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by customer;
• If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by customer, also charge for a favorable price;
• Haida will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance;

B) The main quality warranty maintenance certificate

If there is any dispute please refer to our guarantee letter, so:

1. please keep the guarantee letter, if you lost it, please connect with us in a month.

2. If the guarantee letter has been altered or it has no our stamp, it is useless.

C) The following conditions need to be paid reasonably even in the assurance period:

1. Natural reasons

2. Operating mistakes

3. Voltage is not fit for our operation instruction

4. Repack it without our guides

5. Damaged for borrowing to others

6. Damaged for authorized machine modification

7. Damaged for authorized calibration

8. Authorized transshipment mistake

9. Serve for long distance area

D) Attentions

1. Any service outside Guangdong, China, transport and travel fees shall be paid by customer.

2. The apparatus try not to be used in the following situations:

a. Vibration, rocking the occasion.

b. Direct sunlight.

c. Hot, dusty, damp places.

d. To ensure safe, AC supply of the machine should be well grounded.

e. Do not use strong solvents (such as: benzene, nitro oil) washing machine.

f. Do not inject water and debris into the machine; prevent damage to electrical components and electrical shock.

g. Instrument displays the disassembly and debugging can only be measured by the State Department approved the units and the company, other people not allowed to overhaul.
