Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Gross Weight: | 700Kg |
|---|---|---|---|
| Packaging Dimensions: | 1800*1580*2100mm (WxDxH) | Cooling Method: | Air Cooling |
| Observation Window: | Tempered Glass | ||
| High Light: | 304SS Environmental Test Chambers,304SS Temperature And Humidity Tester,700Kg Temperature And Humidity Tester |
||

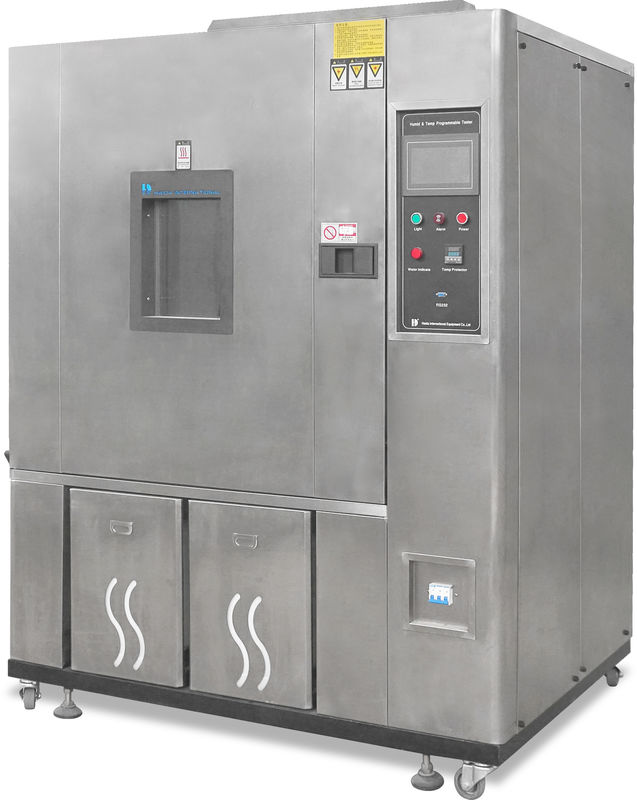

304 stainless steel Costant temperature and humidity environmental control chamber
PRODUCT DESCRIPTION
The temperature and humidity room can do constant temperature and humidity test, temperature and humidity test for electronic products and other products. The temperature and humidity chamber is equipped with a 1000L internal test chamber. This very spacious size test box is ideal for multi-purpose laboratories and QC QA testing of products of different sizes from large product companies.
STANDARD FEATURES
| Model | HD-E702-1000B70 |
| Internal dimension (W*D*H) | 1000*1000*1000mm |
| External dimension (W*D*H) | 1500*1380*1900mm |
| Temperature range | -70~+150℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | 2℃ |
| Humidity range | 20~98%RH (Refer Image below) |
| Humidity fluctuation | ±2.5%RH |
| Humidity uniformity | 3%RH |
| Cooling speed | 1℃/min in average (without loading) |
| Heating speed | 3℃/min in average (without loading) |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel |
| Cooling method | Air cooling |
| Controller |
LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor | France Tecumseh compressor x 2sets |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
| Safety protection device |
Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
CHAMBER DESIGN FEATURES
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain
PROGRAMMABLE CONTROLLER
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
QUALITY ASSURANCE
1. The guarantee period with FOC within 1 year (not including expendable parts cost and transport & travel fees)
1.1 During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part (just for non-expendable part) caused by non-human reasons;
1.2 If any quality problems occur within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by buyer;
1.3 If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by buyer, also charge for a favorable price for new parts;
1.4 Haida will provide a lifetime favorable price to the buyer for expendable & non-expendable parts used in system operation, equipment maintenance;
2. The following conditions need to be paid reasonably even in the guarantee period:
2.1 Natural disaster
2.2 Operating mistakes
2.3 Voltage is not fit for our manual
2.4 Uninstall without our guides
2.5 Damaged for borrowing to others
2.6 Damaged for without authorized machine modification
2.7 Damaged for without authorized calibration
2.8 Without authorized transshipment mistake
3. Attentions: the machine cannot be used following situations:
3.1 Vibration, rocking place.
3.2 Direct sunlight.
3.3 Hot, dusty, damp places.
3.4 To ensure safe, AC supply of the machine should be well grounded.
3.5 Do not use strong solvents (such as: benzene, nitro oil) washing machine.
3.6 Do not inject water and debris into the machine to prevent damage to electrical components and electrical shock.
3.7 Machine’s disassembly and debugging can only be measured by the State Department approved the units and the company, other people not allowed to overhaul.
