Foam Rebound Tester Measure The Resilience Test Machine

Brand Name:	HAIDA
Model Number:	HD-F754
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008

Power:

Electronic ，AC220V±10%, 50/60Hz

Usage:

Plastic Foam

Gross Weight:

Display:

Average Rebound Height, Average Spring Rate

Accuracy:

<1.5%

Supply Ability:

30 Sets per Month Haida

Highlight:

AC220V Furniture Testing Machines

AC220V Foam Rebound Tester

60Hz Furniture Testing Machines

Product Description

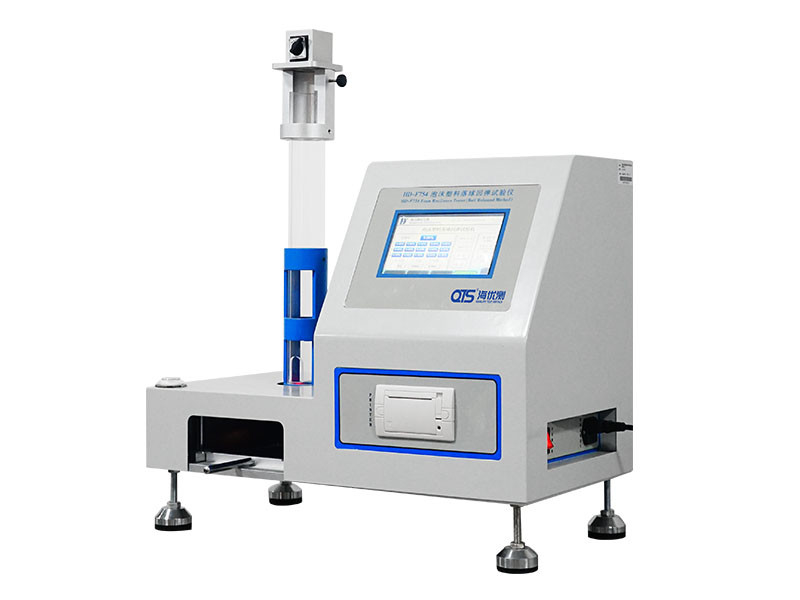

Foam Rebound Tester Measure The Resilience Test Machine

APPLICATIONS& TEST PURPOSE

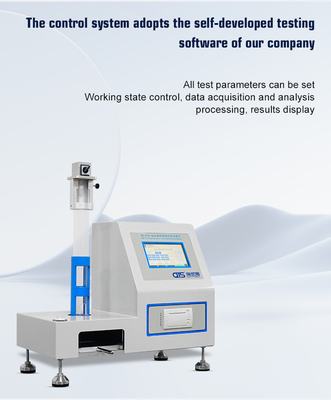

It is designed according to ISO 8307 and ASTM D 3574 test standards . It through specify diameter and mass ball fall on the foam specimen from certain height, calculate the percentage between maximum drop height and rebound height, indicate foam resilience by spring rate. It uses PLC control, LCD display and with USB port to output test results.

STANDARD FEATURES

Drop height(adjustable)	500±0.5%mm(ASTM ISO)
Ball diameter	￠16±0.05 mm
Accuracy	<1.5%
Display	LCD Touch Screen interface
Test result	Average rebound height, average spring rate
Sample Dimension	(L×W×H)100 mm×100 mm× 50mm
Power	AC220V±10%, 50/60Hz, single phase

ABOUT HAIDA

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

Foam Rebound Tester Measure The Resilience Test Machine 0

Foam Rebound Tester Measure The Resilience Test Machine 1
