Product Details:
Payment & Shipping Terms:
|
| Product Name: | Thermal Shock Test Chamber ，Three Zones Thermal Shock Test Chamber | Test Method: | High/ Low Temperature Chamber/ Test Area (Three Zone) |
|---|---|---|---|
| Power Supply: | Three Phase, 380V, 50Hz | Temperature Fluctuation: | ±1℃ |
| External Material: | Antirust Processing Cold-rolled Steel Sheet | Internal Material: | SUS304 Stainless Steel |
| High Light: | 380V Environmental Test Chambers,380V Thermal Shock Test Chamber,SUS304 Environmental Test Chambers |
||

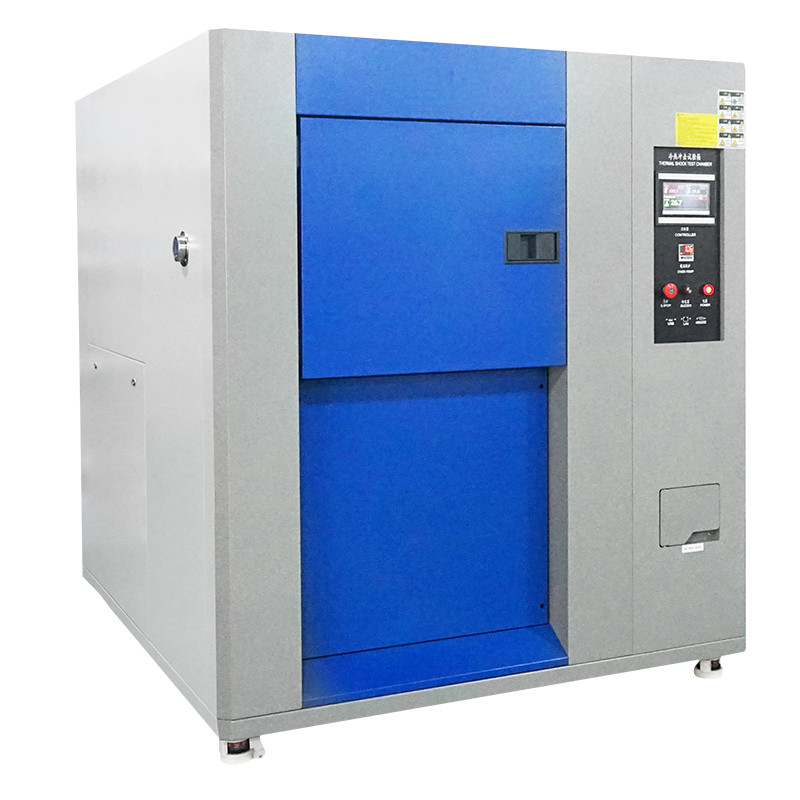

Three Zone Environmental Test Chambers Thermal Shock Test Chamber
EQUIPMENT DETAILS
Thermal Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.
CHAMBER STRUCTURE (THREE ZONE)
WORKING PRINCIPLE
MAIN PARAMETER
| Model | HD-E703 |
| Test method | High/ Low temperature chamber/ Test Area (Three zone) |
| Inner dimension (W*D*H) | 350*350*400mm |
| External dimension (W*D*H) | 1230*1270*1830mm |
| Setting Temperature range | -40 ~ +150C |
| Pre-heating chamber temperature range | +60 ~ 165℃ |
| Pre-cooling chamber temperature range | -10 ~ -60℃ |
| Temperature fluctuation | ±1℃ |
| Thermal recovery time | Within 5 minutes |
| External material | Antirust processing cold-rolled steel sheet |
| Internal material | SUS#304 stainless steel |
| Thermal insulation material | Polyurethane foam and fiberglass |
| Coolant | R404A / R23 |
| Cooling method | Air / Water cooling |
| Power supply | Three phase, 380V, 50Hz |
