ODM AC220V Universal Chair Furniture Testing Machines

Brand Name:	HAIDA
Model Number:	HD-F736
MOQ:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Cylinder Stroke:

0-300mm

Machine Size:

270*85*80cm

Power:

Electronic

Product Name:

Furniture Testing Equipment

Use:

Chair

Standard:

BIFMA X5.1-2002, Test No. 8,11

Supply Ability:

300 Sets per Month

Highlight:

ODM Furniture Testing Machines

AC220V Furniture Testing Machines

ODM Universal Testing Machines

Product Description

Universal Furniture Chair Testing Machines Equipment

Specifications:

Test Machine for Chair :
ODM Integrate Universal Chair Drop Furniture Testing Machine is used to test the durability of the seat of the chair.

The usage:

ODM Integrate Universal Chair Drop Furniture Testing Machine is a two station testing equipment.

According to test Standard: BIFMA X5.1-2002, Test No. 8,11
Applicability: This test applies to all types of chairs.
Purpose of Test: to evaluate the ability of a chair to withstand heavy impact forces on the seat.
ODM Integrate Universal Chair Drop Furniture Testing Machine is designed for dynamic and cyclic durability seat test.

Specifications

ODM Integrate Universal Chair Drop Furniture Testing Machine

Mode	HD-F736
Counter	0-999,999, memory, output control
Impact sandbags diameter	16 inch 125 pounds standard sandbbags
Static pressure mould diameter	8 inch, 165 pounds briquetting
Impact speed	10-30 times/minute or specified
Static pressure speed	10-30 times/minute or specified
Cylinder stroke	0-300mm
Rail height	90-135cm
Machine size	2708580cm
Power	AC220V, 3A
BIFMA requirements	impact 100000 times+ static pressure 20000 times(left) +static pressure 20000times (right)

Main Features :

Test sofa or furniture in the overall strength of the collision of the transportation and installation

Impact test seat , armrest shock , resting legs impact

The impact of product testing seat , armrest shock , resting legs shock .

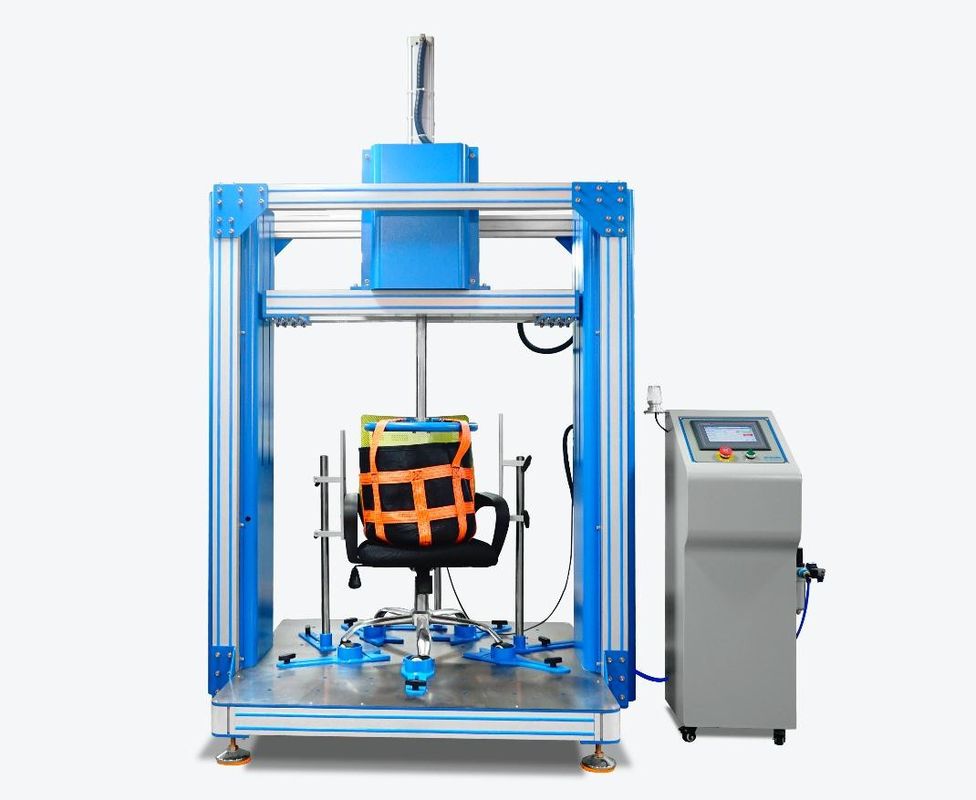

ODM AC220V Universal Chair Furniture Testing Machines 0

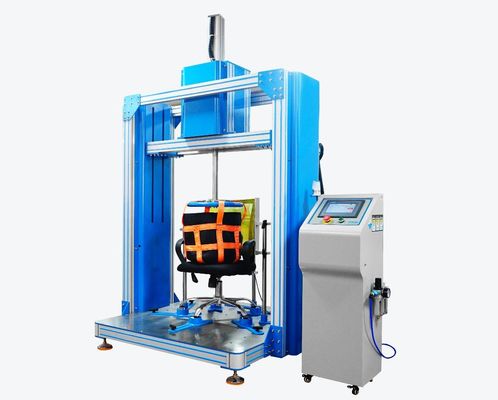

ODM AC220V Universal Chair Furniture Testing Machines 1
