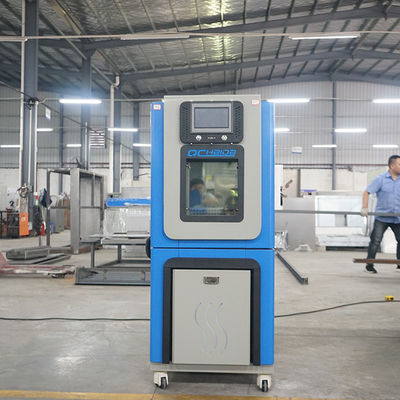

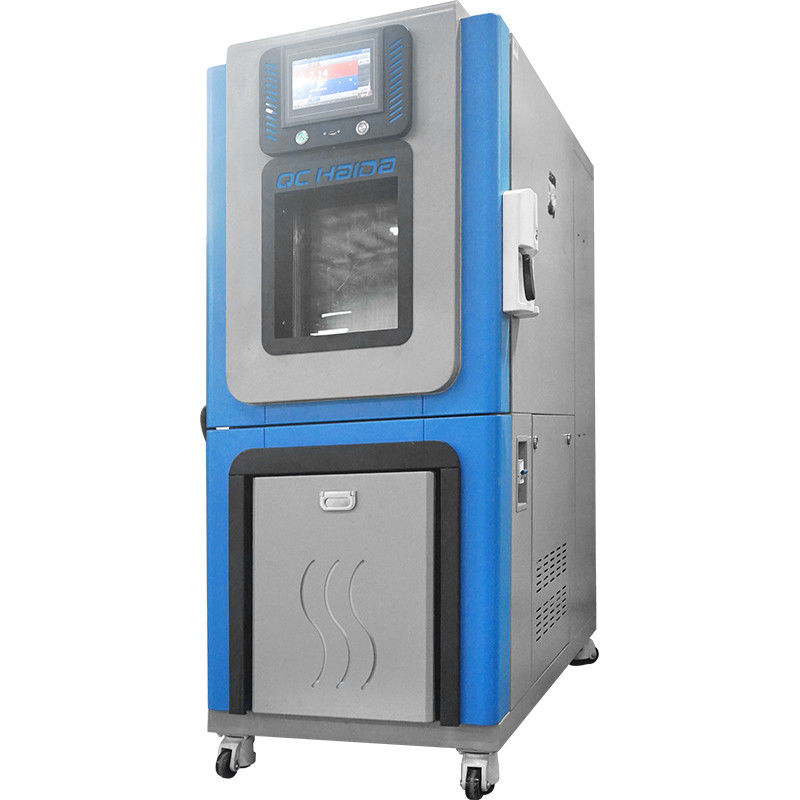

Constant Tempreture & Humidity Environmental Climate Test Chamber
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 800*1280*1580mm
Power supply source: single-phase, 220±10%, 50Hz (can be appointed)
Gross Weight: 230kg
Standard Features
| Model |
HD-E702 |
| Internal dimension(W*D*H) |
400*500*500mm |
| External dimension(W*D*H) |
600*1080*1380mm |
| Temperature range |
-40~+150℃ |
| Temperature fluctuation |
±0.5℃ |
| Temperature uniformity |
2℃ |
| Humidity range |
20~98%RH (Refer Image below) |
| Humidity fluctuation |
±2.5%RH |
| Humidity uniformity |
3%RH |
| Cooling speed |
1℃/min in average (without loading) |
| Heating speed |
3℃/min in average (without loading) |
| Internal chamber material |
304 stainless steel, mirror finished |
| External chamber material |
Stainless steel |
| Cooling method |
Air cooling |

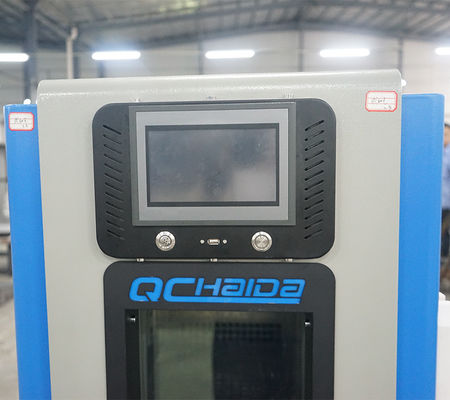

| Controller |
LCD touch screen, programmable control temperature and humidity
Can set different parameter for cyclic test
|
| Insulation material |
50mm high density rigid Polyurethane foam |
| Heater |
Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor |
France Tecumseh compressor |
| Lighting |
Heat resistance |
| Temperature sensor |
PT-100 dry and wet bulb sensor |
| Observation window |
Tempered glass |
| Testing hole |
Diameter 50mm, for cable routing |
| Sample tray |
SUS#304 stainless steel, 2pcs |
| Safety protection device |
Protection for leakage
Over-temperature
Compressor overvoltage and overload
Heater short circuit
Water shortage
|
Applications
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
Chamber Design Features
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain
Programmable Controller
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
RS-232 interface to connect computer for output
Trade term:
EXW Dongguan, China
Lead time:
Shipment for the above equipments is 20 days upon receipt of down payment.
Payment term:
T/T 50 % in advance, balance payment before delivery of goods
Validity:
This quote is firm for 30 days
Warranty:
One-year warranty on all parts, labor is not covered. Warranty coverage include shipment.
