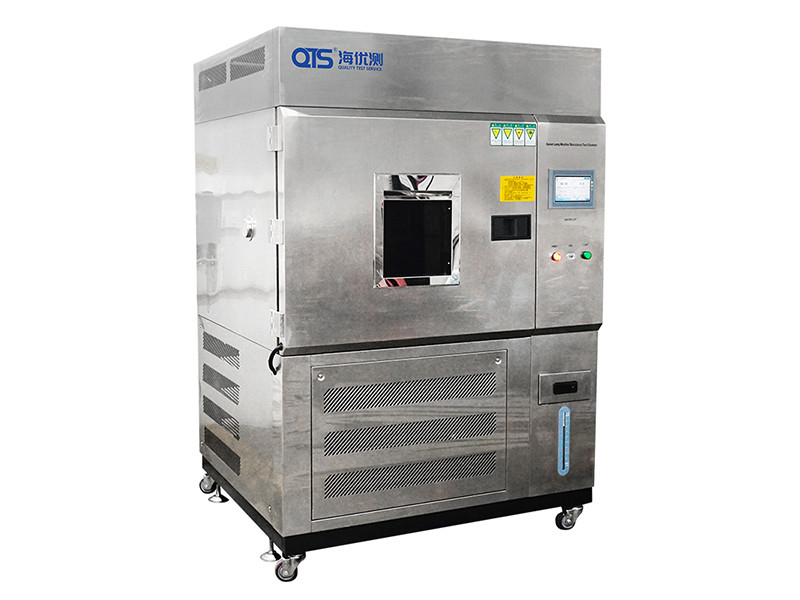

SUS304 5.4KW Environmental Xenon Lamp Aging Test Machine

SUS304 5.4KW Environmental Xenon Lamp Aging Test Machine
SUS304 5.4KW Environmental Xenon Lamp Aging Test Machine
video play

Large Image :  SUS304 5.4KW Environmental Xenon Lamp Aging Test Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Certification: ISO,CE
Model Number: HD-E711
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets per Month Haida
Detailed Product Description
Internal Dimension (W*D*H): 700*500*600mm External Dimension (W*D*H): 1350*1300*1850mm
Internal Chamber Material: SUS 304 # Stainless Steel, Anti-rust External Chamber Material: Cold-rolled Steel With Spray
High Light:

SUS304 Aging Test Machine


5.4KW xenon test chamber


SUS304 xenon test chamber

SUS304 5.4KW Environmental Xenon Lamp Aging Test Machine​


Product Description:

Xenon aging test chamber can simulate the full sunlight spectrum of xenon arc lamp to reproduce the destructive light waves in different environments, to provide the appropriate environmental simulation and accelerated testfor scientific research, product development and quality control.


Climate Tester can provide xenon Weathering test chamber simulate the hazards caused by sunlight, rain and dew, the leading cause of product degradation, application materials such as coatings, plastics, aluminum panels, and automotive safety glass.


Main Parameter:

Item Specification
Internal Dimension (W*D*H) 700*500*600mm
External Dimension (W*D*H) 1350*1300*1850mm
Internal chamber material SUS 304 # Stainless Steel, anti-rust
External chamber material Cold-rolled steel with spray
Chamber humidity range 55%~90% RH
Chamber temperature 35℃~90℃
Black panel temperature 45℃~95℃, adjustable
Temperature uniformity ≤±3℃
Filter Window glass filter / daylight filter
Light source Air cooled long arc xenon lamp
Xenon lamp power 1.8KW * 3pcs = 5.4KW
Control system

LCD programmable controller,

Auto display irradiance, capacity: 100 groups program, 99 cycles.

Illumination time 1~999 hours, adjustable
Water spray system

Water spray time 999 minutes settable

Interval spray time, 1~240 minutes settable

Sample holder Stainless steel, 1pc

Distance from sample

holder to lamp

Heating Nickel-chromium alloy electric heater
Humidification power Stainless steel surface evaporative humidifier
Insulation materials Supper fine glass fiber
Temperature sensor PT100 high precision sensor
Air circulation system Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity
Standard accessories

Xenon lamp x 3pcs;

Humidification cotton x 5pcs;

English user manual x 1pc;

Operation video x 1pc


Main Feature:

1, Ventilation system: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system

2, Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.

3, Temperature sensor: PT100 platinum resistance thermocouple.

4, Equip with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.

5, Multiple protective devices: Over temperature protection, water leakage alarm, over pressure of compressor, electricity leakage protection, alarm and auto power offer protection. In order to protect Xenon light, the light will turn off automatically once open the door.


1, using full-spectrum xenon lamp LED;

2, a variety of alternative filtration system;

3, rain shower function;

4, relative humidity control.

5, chamber air temperature control system;

6, irregular shape of the sample holder.
