Dongguan Haida Equipment Co.,LTD
Home ProductsEnvironmental Test Chambers

8479899990 220V Hot Air Circulation UV Aging Test Chamber

China Dongguan Haida Equipment Co.,LTD certification
China Dongguan Haida Equipment Co.,LTD certification
The instruments you recommend are very suitable for the testing needs of our laboratory products, after-sale is very patient to answer all our questions, and guide us how to operate, very nice.

—— Div Harish

You are very professional partners and we are willing to establish long-term cooperative relations with you.

—— Wojtek Krawczyk

On behalf of the company to visit your factories and companies, the technical staff is very professional and patient, I think I would be happy to cooperate with you again.

—— Manuel Munoz

I'm Online Chat Now

8479899990 220V Hot Air Circulation UV Aging Test Chamber

8479899990  220V Hot Air Circulation UV Aging Test Chamber
8479899990  220V Hot Air Circulation UV Aging Test Chamber 8479899990  220V Hot Air Circulation UV Aging Test Chamber 8479899990  220V Hot Air Circulation UV Aging Test Chamber

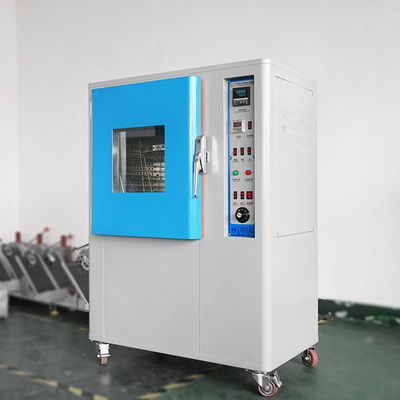

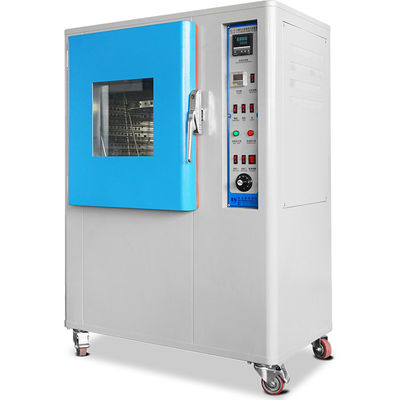

Large Image :  8479899990 220V Hot Air Circulation UV Aging Test Chamber

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Model Number: HD-E704
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: T/T L/C
Supply Ability: 30 Sets per Month Haida
Detailed Product Description
Internal Chamber Size(W*D*H): 50*50*60cm External Chamber Size(W*D*H): 114*74*130cm
Temperature Range: Ambient Temperature~200℃ Control Mode: Automatic Calculation Controller
High Light:

8479899990 uv aging test chamber

,

220V UV Aging Test Chamber

,

8479899990 environmental Test Chamber

UV Anti-Yellowing Aging Test Chamber



General Specification

Packaging Dimensions: (W*D*H): 134*90*153cm

Power supply source: single-phase, 220V, 50Hz (can be appointed)

Gross Weight: 170kg

HS Code: 8479899990



Product features:

It can meet the requirements of various materials, semi-finished products and finished products to simulate the appearance changes when exposed to sunlight and ultraviolet rays in the atmospheric environment,

It is generally believed that testing at 50 ℃ for 9 hours is theoretically equivalent to 6 months of exposure to the atmosphere.

It can meet the requirements of high temperature aging test, promote the deterioration of vulcanized rubber, and calculate the change rate of tensile force and elongation before and after heating

It is 70 ℃ a day, which is equivalent to 6 months of exposure to the atmosphere.

High quality, long life, high cost performance and wide application range



Box structure:

1. Inner box material: SUS304 stainless steel plate (1.2mm thick)

2. Outer box material: SUS304 stainless steel plate (1.2mm thick)

3. Door handle: non reaction, explosion-proof door handle, easy to operate, safe and reliable.

4. Mobile and positioning device: high quality fixed Pu activity is installed at the bottom of the machine

Wheel, it is convenient to move the machine to the designated position, and then fix the caster.

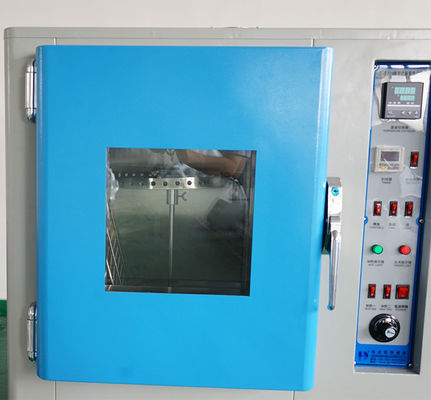

5. Observation window: double layer vacuum strengthened glass is used to observe the test process clearly.

6. Sample holder: SUS304 stainless steel is used for punching and bending into a mesh

The space between material racks can be adjusted.



Standard Features

Item Specification
Internal chamber size(W*D*H) 50*50*60cm
External chamber size(W*D*H) 114*74*130cm
Temperature Range Ambient Temperature~200℃
Control Mode Automatic Calculation Controller
Temperature display accuracy 0.1℃
Control accuracy ±3℃
Distribution accuracy ±1℃ (ambient ~ 100℃)
Time memory 0-999 hours, Power Failure Memory Type, with Buzzer
Sample holder rotation speed Diameter 45cm, 10±2 roll/min
UV light source 300W UV lamp
Standard Accessories Sample shelf x 2pcs
Heating method Hot air circulation
Security devices Over-temperature power-off indicator light;
Safety overload switch ammeter
Chamber material Internal: Stainless Steel SUS304;
External: Steel plate with baking varnish
Accessory 1 x English operation manual, 1 x Operation video CD



Application

  • The machine can do two tests: anti-yellowing and aging.
  • Anti-yellowing: to stimulate the environment condition, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50’C for 9 hours, in theory as exposed to atmosphere for 6 months.
  • Aging: it can promote the increase of sulfur rubber deterioration so as to calculate the change rate of tensile and elongation before and after heat. Its generally thought that test for one day at 70C, in theory as exposed to the atmosphere for 6 months.



Warranty:

One-year warranty on all parts, labor is not covered. Warranty coverage includes shipment.
