200kg Foam Polymer Material Reciprocating Compression Testing Machine

Brand Name:	Haida
Model Number:	HD-F750-1B
MOQ:	1 Set
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE

Test Purpose:

Dynamic Fatigue Characteristics Of Materials

Display Method:

Touch Screen Display

Control Method:

Circuit Board Control

Force Sensor:

200kg (one)

Supply Ability:

30 Sets per Month Haida

Highlight:

200kg Compression Testing Machine

200kg compressive strength machine

200kg furniture testing equipment

Product Description

Foam Polymer Material Reciprocating Compression Testing Machine

Product Introduction:

The sponge fatigue tester is suitable for measuring the thickness reduction value and hardness reduction value of porous elastic materials used in interior decoration. Put a square sample on the lower platform of the tester, repeatedly indent the sample through an indenter whose area is smaller than the sample, and reach the maximum load during each impact period that maintains the specified range during the same period, and pass a certain number of times After that, evaluate the performance of the sample.

Product Features:

Exquisite craftsmanship, Data precision

1. The use of quick connectors to replace different loading pads is convenient and fast.

2. Adopt Japanese Panasonic servo motor and German Tycox value sensor, high precision.

The Main Technical Parameters:

Index	Parameter
Force sensor	200kg (one)
Test speed	70±5次/min
Display method	Touch screen display
Control method	Circuit board control
Test itinerary	80mm
Testable sample maximum size	38038050mm(LWH)
Testing frequency	1-999999 Times(Arbitrary setting)
Power supply	AC /220V,25A,50HZ
Total power	0.85KW
Machine size	600500800 mm(LWH)

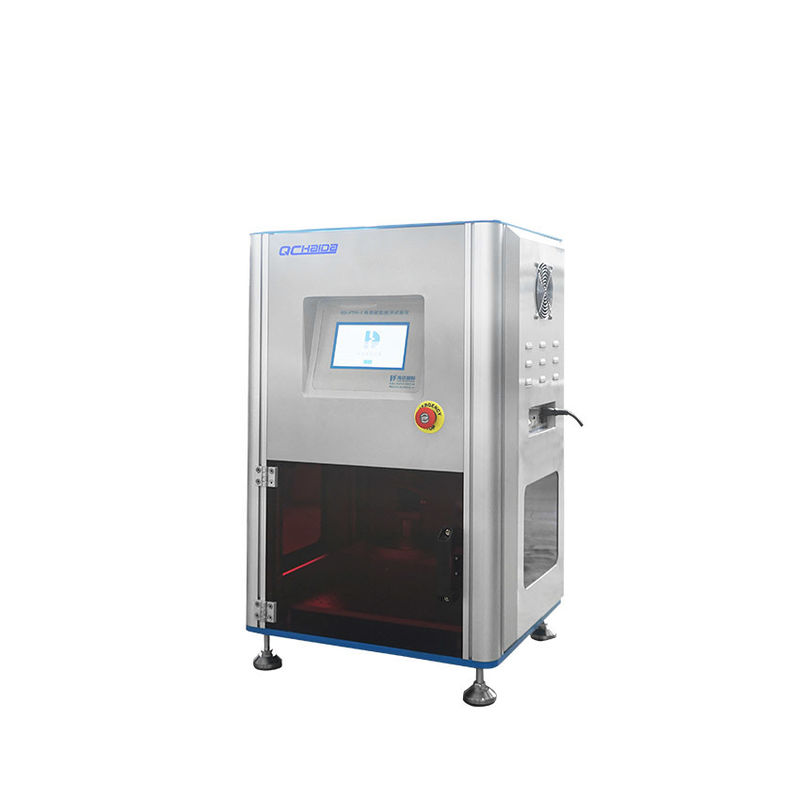

Product Image:

1.Powerswitch
2.Data interface
3.Power outlet

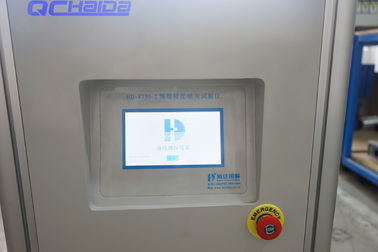

1.Display and control panel

2.Emergency stop button

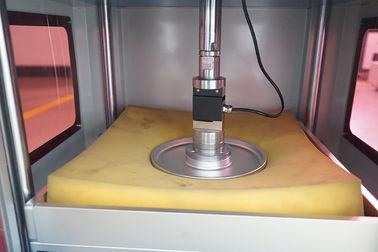

Test area

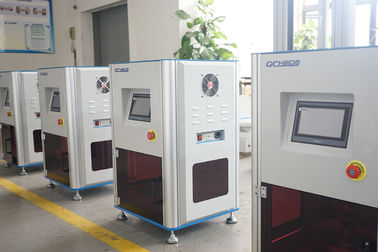

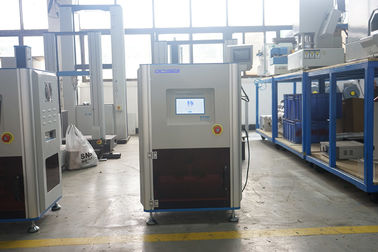

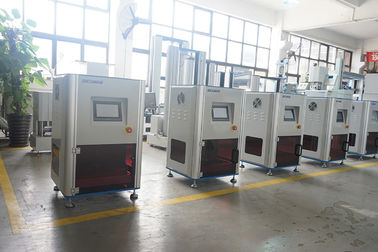

Product Pictures:

200kg Foam Polymer Material Reciprocating Compression Testing Machine 3
