Gas Exchange Pressure Difference Testing Machine For Medical Facial Mask 220V Yy0469-2011 Standard

Brand Name:	HAIDA
Model Number:	HD-W

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Test Standard:

YY0469-2011 Standard

Power:

220V , 50Hz

Purpose:

Test For Tightness

Air Flow:

8L/min

Sealing Method:

Type O Ring Seal

Highlight:

universal tensile testing machine

electronic universal testing machine

Product Description

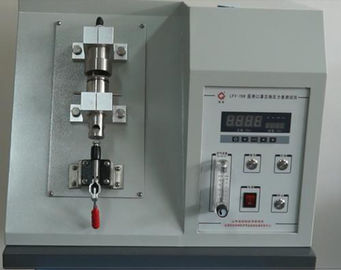

Medical Facial Mask Gas Exchange Pressure Difference Testing Machine

1. Products description:

Mask Gas Exchange Pressure Difference Testing Machine is based on the test principle of the standard YY0469-2011 "Technical Requirements for Medical Surgical Masks". The differential pressure sensor is used to achieve the pressure difference between the internal pressure and the external pressure of the mask. The test item is equipped with a special tooling device to achieve the test tightness of the product. It is mainly applicable to the measurement of the gas exchange pressure difference of medical surgical masks / mask woven fabrics. It can also be used to determine the gas exchange pressure difference of other textile materials.

2. Application:
--- Determination of gas exchange pressure difference between surgical masks/woven masks.
--- Determination of gas exchange pressure differences of other textile materials.

3. Meeting Standards:

Yy0469-2011 Technical Requirements For Surgical Masks For Medical Use

4. Features:

The vacuum pump is used to realize the power source of the test product, which is not limited by the space of the test site.
Equipped with high precision differential pressure sensor, digital display of the differential pressure on both sides of the sample;
The case adopts the form of all-in-one machine with built-in vacuum pump and digital display meter to realize automatic pressure detection and automatic display.
The internal and external pressure measurement of the product is realized by means of tooling and fixture, with built-in differential pressure sensor.
Equipped with special jig, convenient to load and test products.

5.Standard Parameters:

Indicator	Parameter
Test power source	principle of negative pressure vacuum test
Air flow	8L/min
Temperature range	room temperature
Sensor accuracy	0.5%
Maximum voltage regulation	20kpa
Sealing method	Type O Ring seal
Machine weight	25kg
Sample permeability diameter	Ф25.4mm
Range of differential pressure sensor	0~500pa
Display mode: digital display pressure difference	digital display pressure difference
Power supply	220V,50Hz
