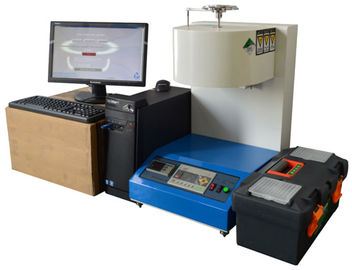

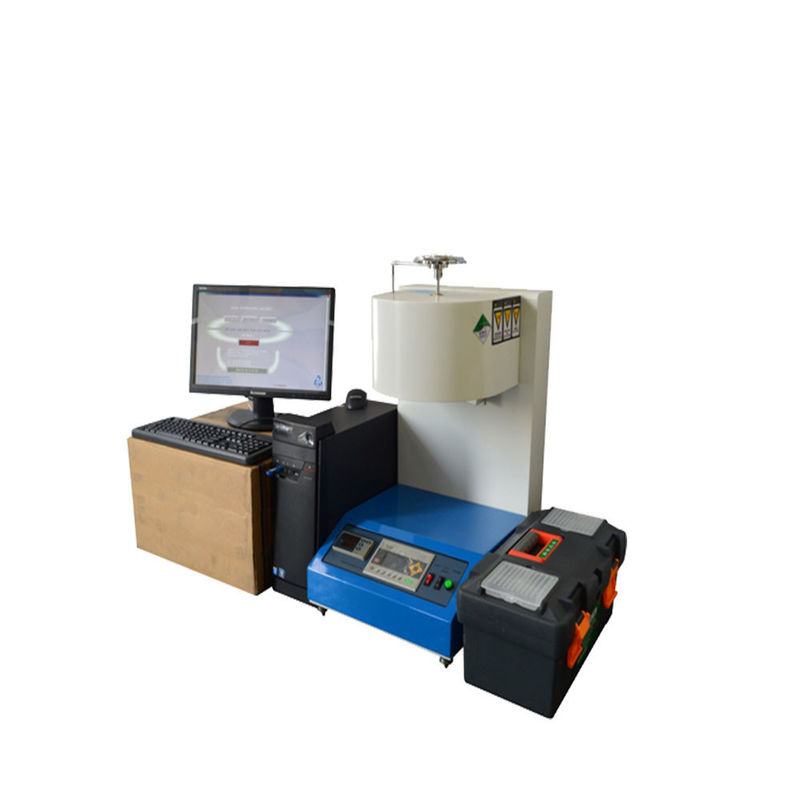

ASTM / ISO Standard Melt Flow Index Test Equipment

Brand Name:	HAIDA
Model Number:	HD-W
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Purpose:

Determination Of Dead Cavity Performance Of Masks

Test Standard:

ASTM-D1238, ISO 1133

Power:

AC220V, 50Hz, Single Phase

Displacement Accuracy:

0.01mm

Temperature Range:

Room Temperature-400°C

Supply Ability:

300 Sets per Month Haida

Highlight:

universal tensile testing machine

electronic universal testing machine

Product Description

ASTM/ ISO Standard Non-woven Plastic PP Medical Protective Mask Melt Flow Index Test Equipment

Product Introduction:
The non-woven plastic PP (polypropylene) in the mask generally has a flowability of 1000 ~ 2000g / 10min, which is a super-high-flow plastic. It cannot be tested by the melt index meter of the ordinary mass method, and we should use the volume Method of melt index test.

General Specifications:
Packaging Dimensions:(L×W×H)1240×630×900mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 130kg

Standards:ASTM-D1238, ISO 1133

Product Application:

Melt Flow Index Tester is used to test the flowability of thermoplastic polymer under high temperature, such as polyethylene, polypropylene, pom, ABS resin, polycarbonate, nylon fluorine and other plastic polymers. The automatic temperature control methods of the machine three kinds of blanking ways, manual, timing and automatic control according to operation method, which can realize melt-mass flow rate (MFR) and melt-volume flow rate (MVR) two test methods.

Standard Parameters:

Item	Parameters
Testing range	0.1-800.00g/10min (MFR); 0.1-800.00 cm3/10min(MVR)
Temperature range	Room temperature-400°C
Controlling Accuracy	±0.2°C
Timing accuracy	0.1s
Displacement accuracy	0.01mm
Standard loads	325g, 875g, 960g, 1200g, 1640g, 2500g, 4100, 5000g & 5000g
Combination load	325g, 1200g, 2160g, 3800g, 5000g, 7160g, 10000g, 21600g
Material cutting method	Manual, timing and automatic cutting (optional)
Time setting	0.1~999.9min
Cylinder	Diameter 9.5504±0.0076mm
Land of piston	Diameter 9.4742±0.0076mm, length: 6.35±0.13mm
Thin hole pattern	External diameter: 9.5±0.02mm; bore diameter 2.0955±0.0051mm; length 8.00±0.025mm
Machine Size	(L×W×H) 40×51×60cm
Weight	42kg (not including the weights)
Power	AC220V, 50Hz, single phase
Accessory	One set computer& software, one tool box, one piece operation video CD and one piece English manual
Design standard	ASTM-D1238, ISO 1133
