One Time Face Mask Air Permeability Testing Equipment Touch Screen Control ASTM Standard

Brand Name:	HAIDA
Model Number:	HD
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Standard:

ASTMF2100, YY 0469-2011, EN14683:2019

Power Supply:

220V, 50Hz,300W

Measuring Range:

0-2000Pa, Accuracy: 1Pa

Weight:

Dimensions:

460mm X 500 Mmx 670 Mm

Supply Ability:

30 Sets per Month Haida

Highlight:

fabric checking machine

textile industry equipment

Product Description

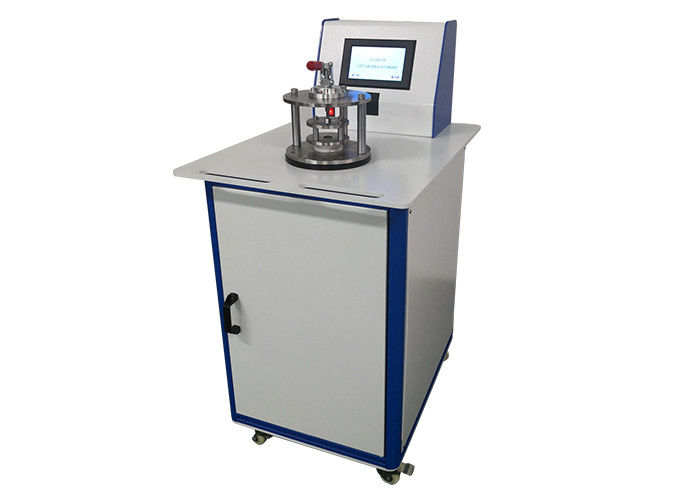

ASTM Standard Touch Screen Control Disposable Medical Mask Air Permeability Testing Equipment

Product Introduction:

Disposable medical mask air permeability testing equipment is used to measure the pressure difference index of medical surgical masks under specified conditions.

Test Principle:
Disposable medical mask air permeability testing equipment measures the air flow that vertically passes through a given area of the sample within a certain period of time under the specified pressure difference, and calculates the breathability.

Permeability is the ability of a material to allow gases to pass under pressure.

Product Features:

1. HD color touch screen.

2. High precision imported digital differential pressure gauge.

3. High-precision imported flowmeter with high flow control accuracy.

Technical Parameters:

Measuring range	0-2000Pa, accuracy: 1Pa
Flowmeter range	0-10L/min, accuracy: 3%±
Exhaust volume of air pump	8L/min(1-100L/min adjustable)
Experimental area	4.9cm²,5.06cm²
Dimensions	460 x 500 x 670 mm
Power supply	220V, 50Hz,300W
Weight	25kg
Test standard	YY 0469-2011, Y/T 0969-2013, EN14683:2019, ASTMF2100
