300W Yarn Strength Tester For Chemical Fiber Filament Testing / Textile Measuring Equipment

Brand Name:	Haida
Model Number:	HD-W861
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

CE, , ISO

Measuring Accuracy:

≤0.2%F·S

Draw Speed:

50~1000mm/min

Max Elongation:

800mm

Supply Ability:

10set/ month

Highlight:

fabric checking machine

textile industry equipment

Product Description

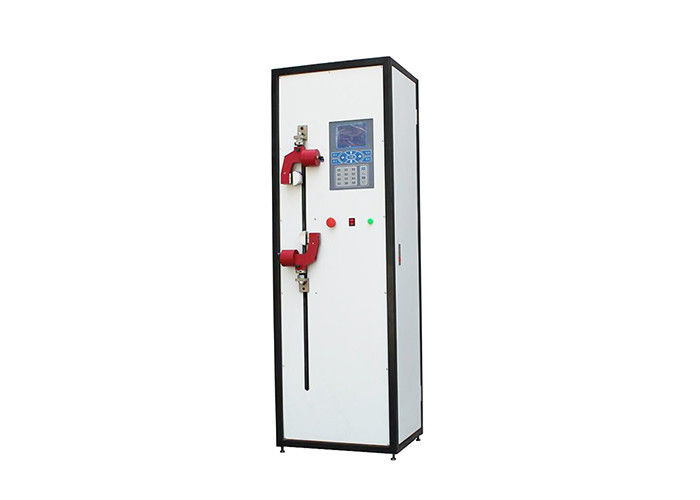

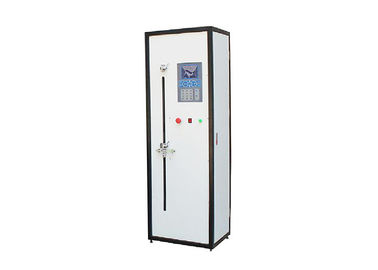

Yarn Strength Tester For Chemical Fiber Filament

Product description

This machine is use for testing breaking strength and elongation test for Synthetic fiber monofilament, nylon, polyamide fiber, polyester filament, ply yarn and textured yarn

Test standard

GB/T 14344,ISO 2062,GB/T 3916,ASTM D2256,DIN,BS

Measure Range: 1%~100%

Model	A type	B type	C type
Load	50N	100N	500N

Mode:CRE, Microcomputer Control, LCD display Support, online communication

Technical parameter

Measuring accuracy	≤0.2%F·S
Draw speed	50~1000mm/min
Max Elongation	800mm
Fixture distance	200~500mm,Digital Preset,Pneumatic clamp
Power	AC220V 50HZ 300W
Outside dimension	520X400X1600mm
Weight	60Kg
